Tail Kit Parts

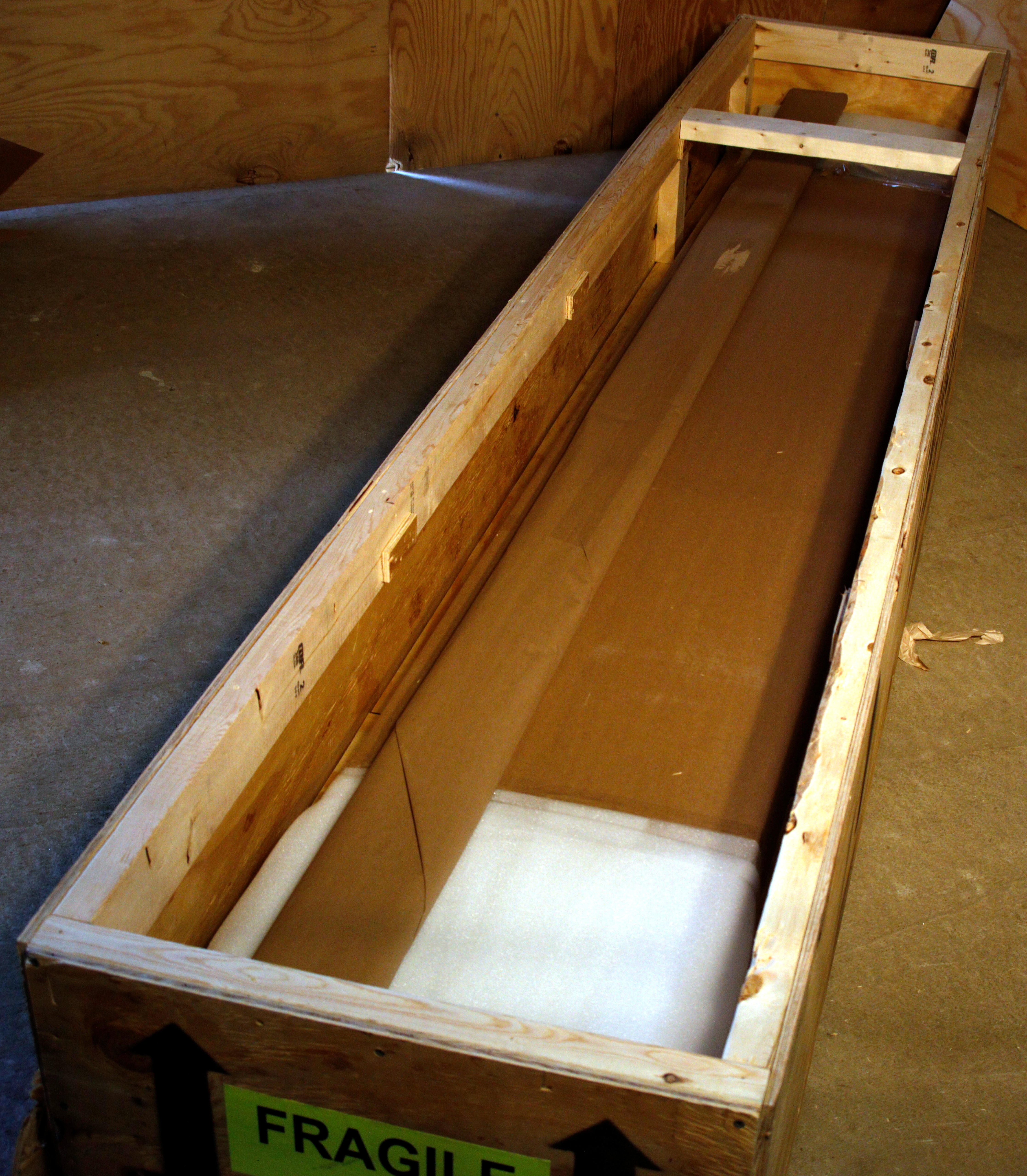

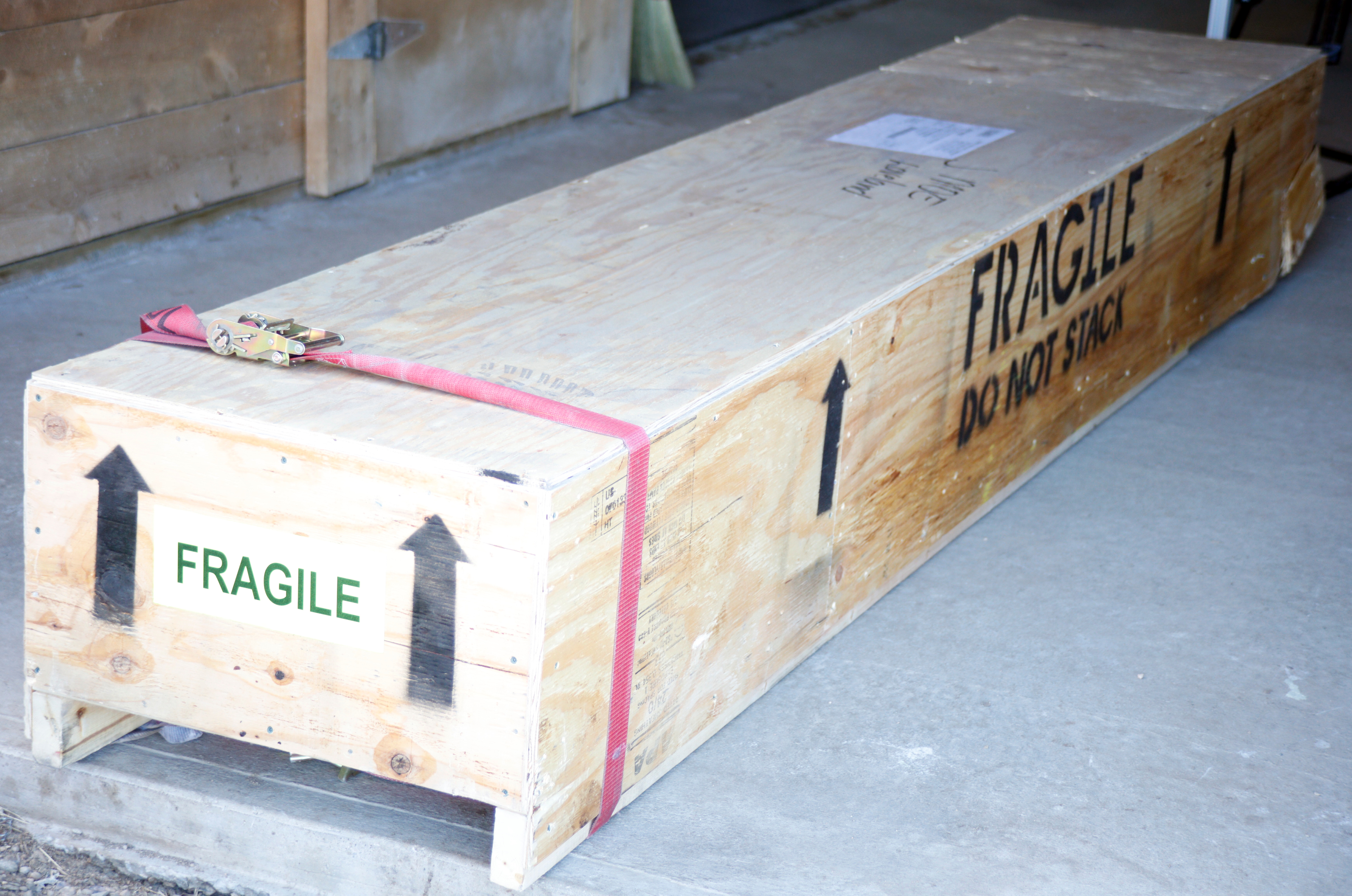

Tail kit crate.

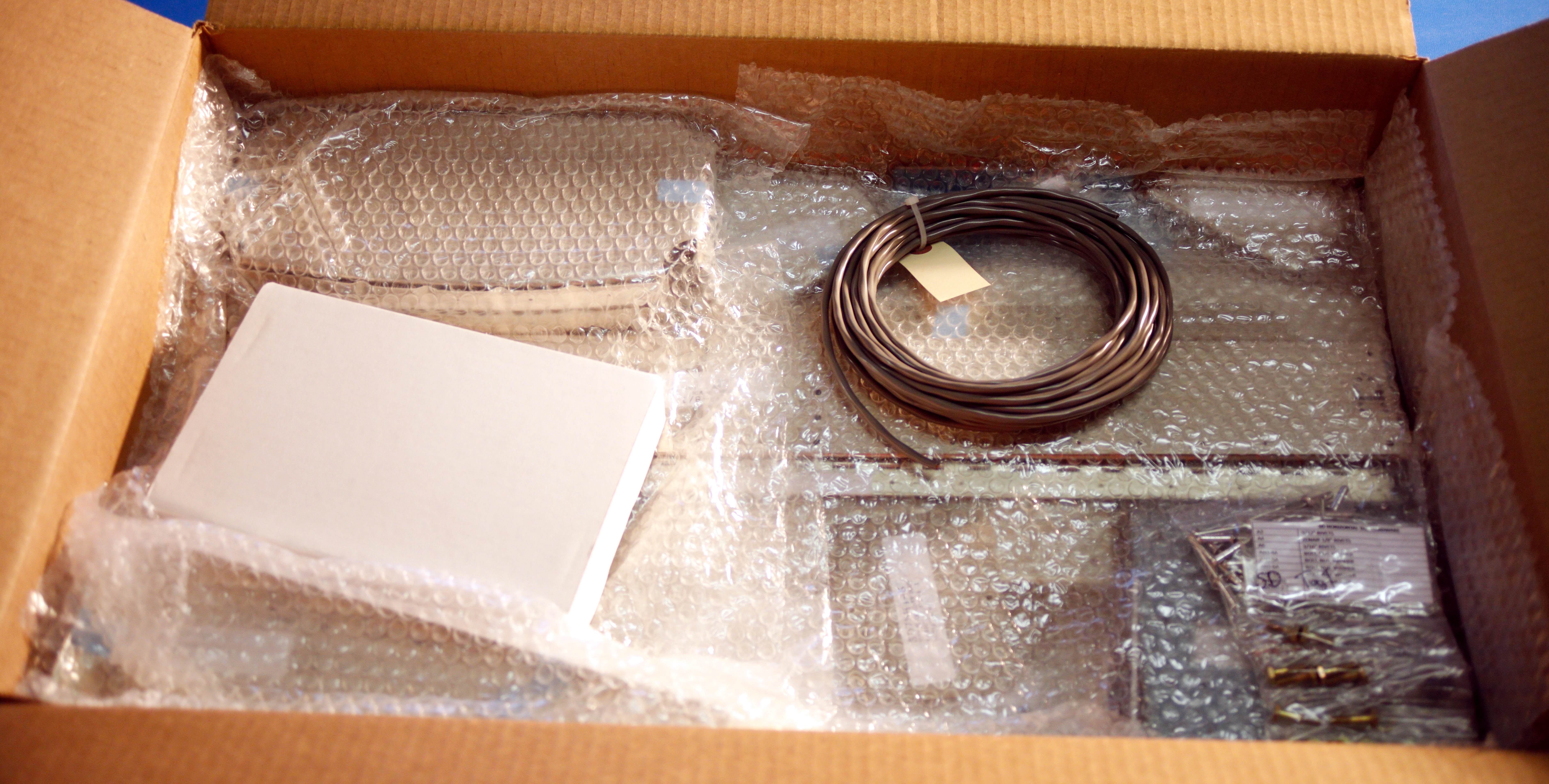

Tail kit parts box.

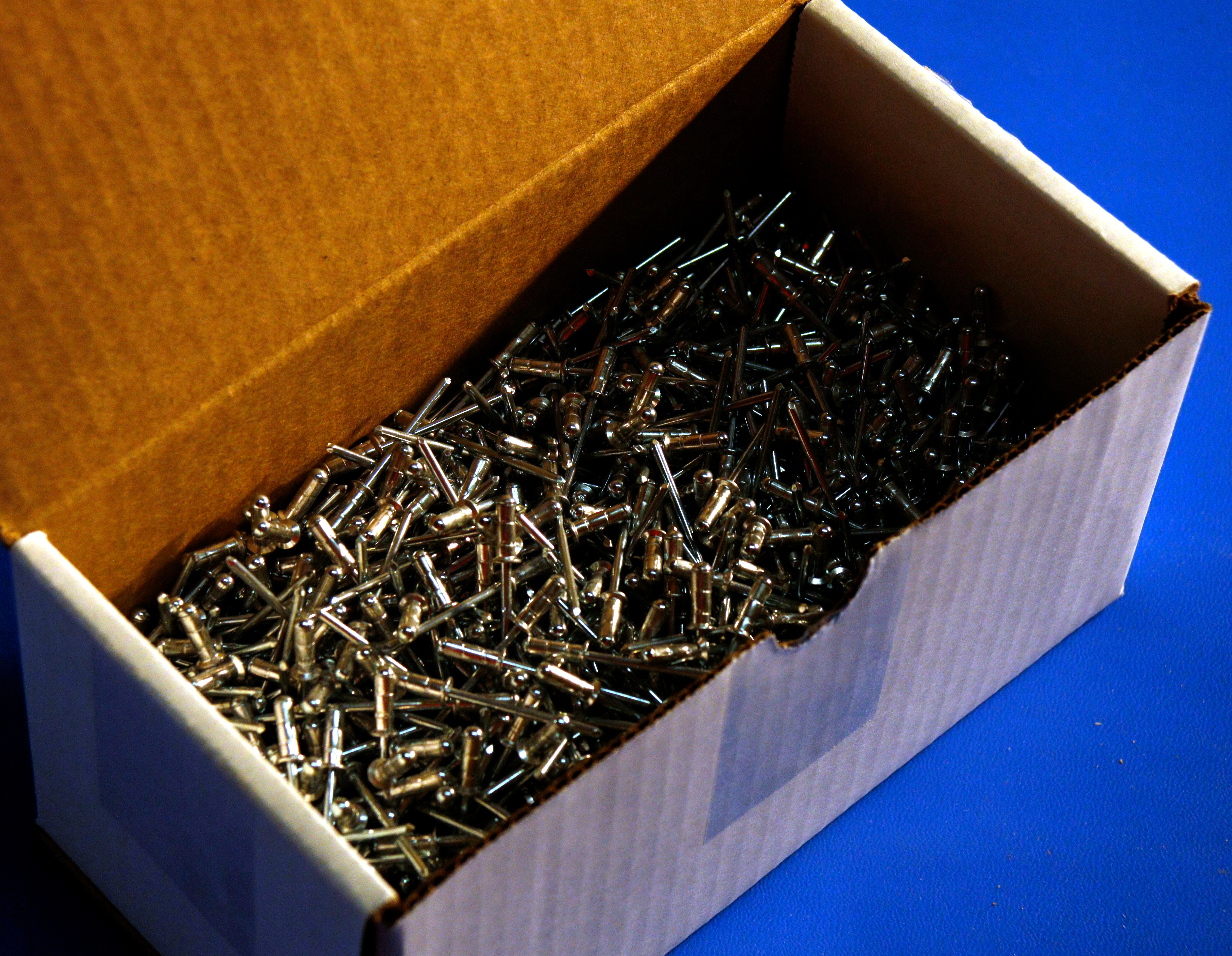

A5 rivets.

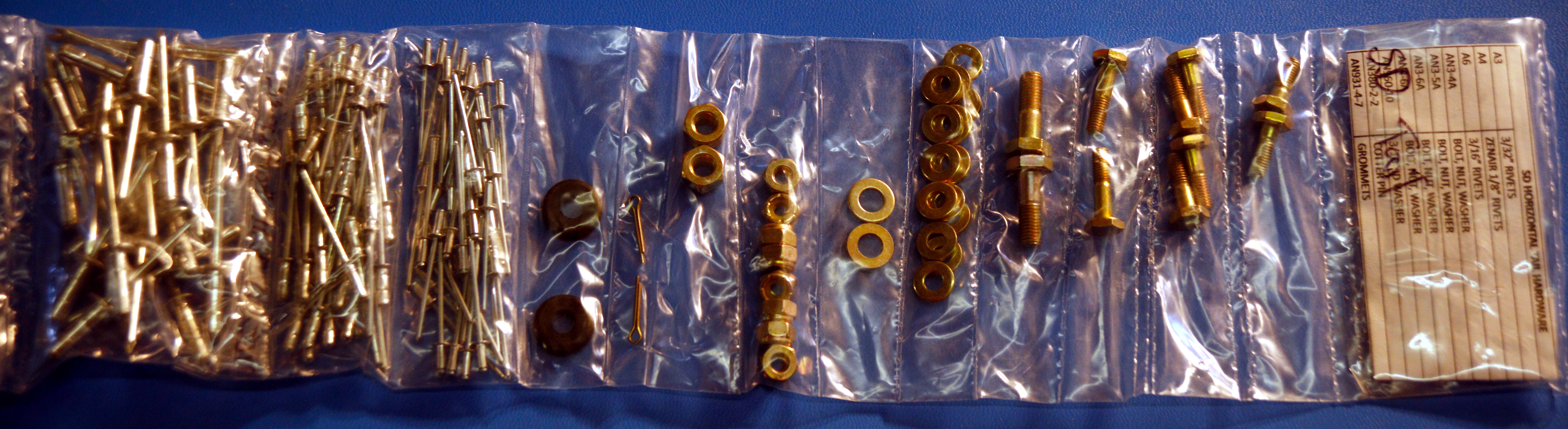

SD horizontal tail hardware, various.

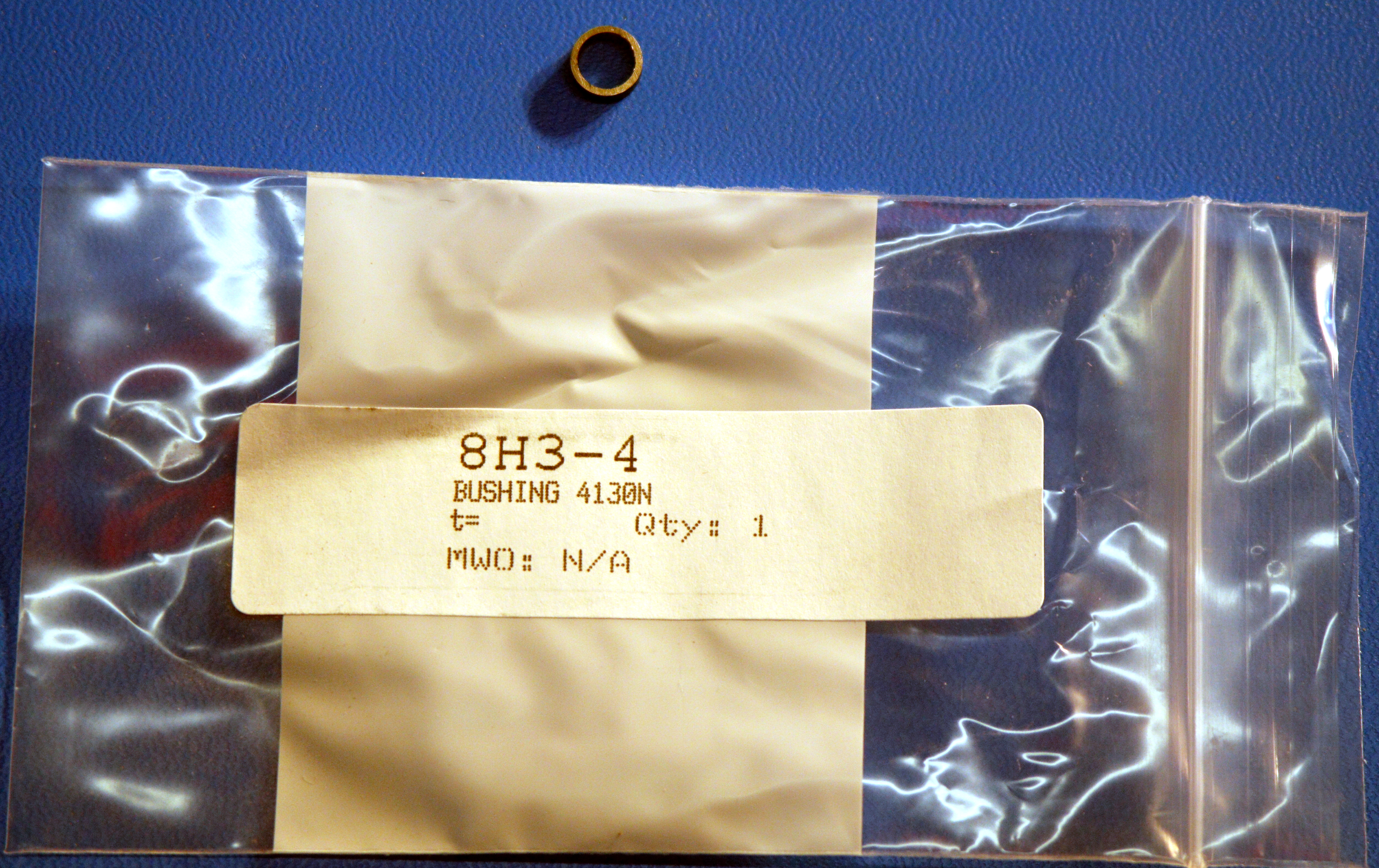

8H3-4 – Bushing 4130N.

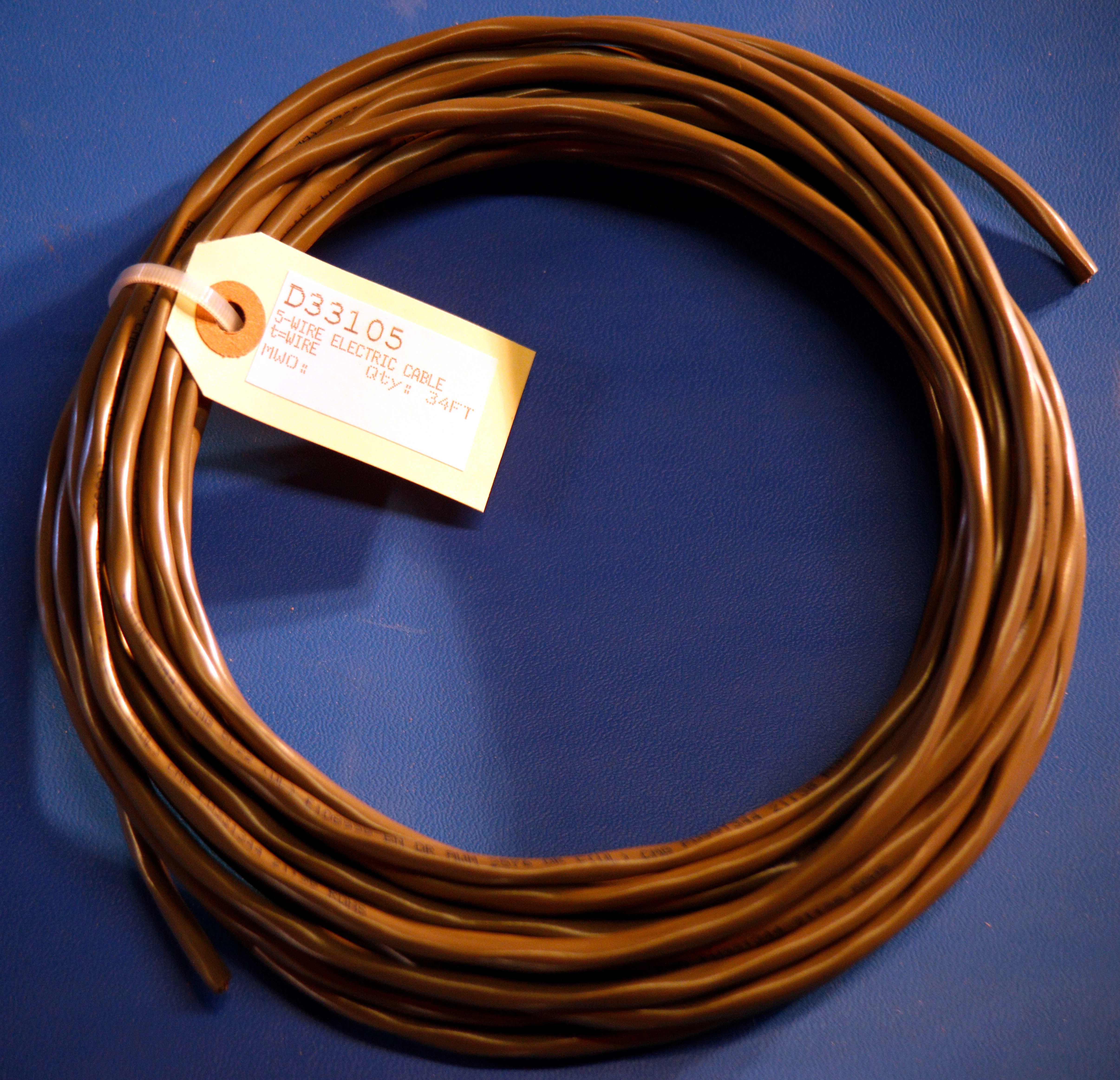

D33105 – Wire electric cable.

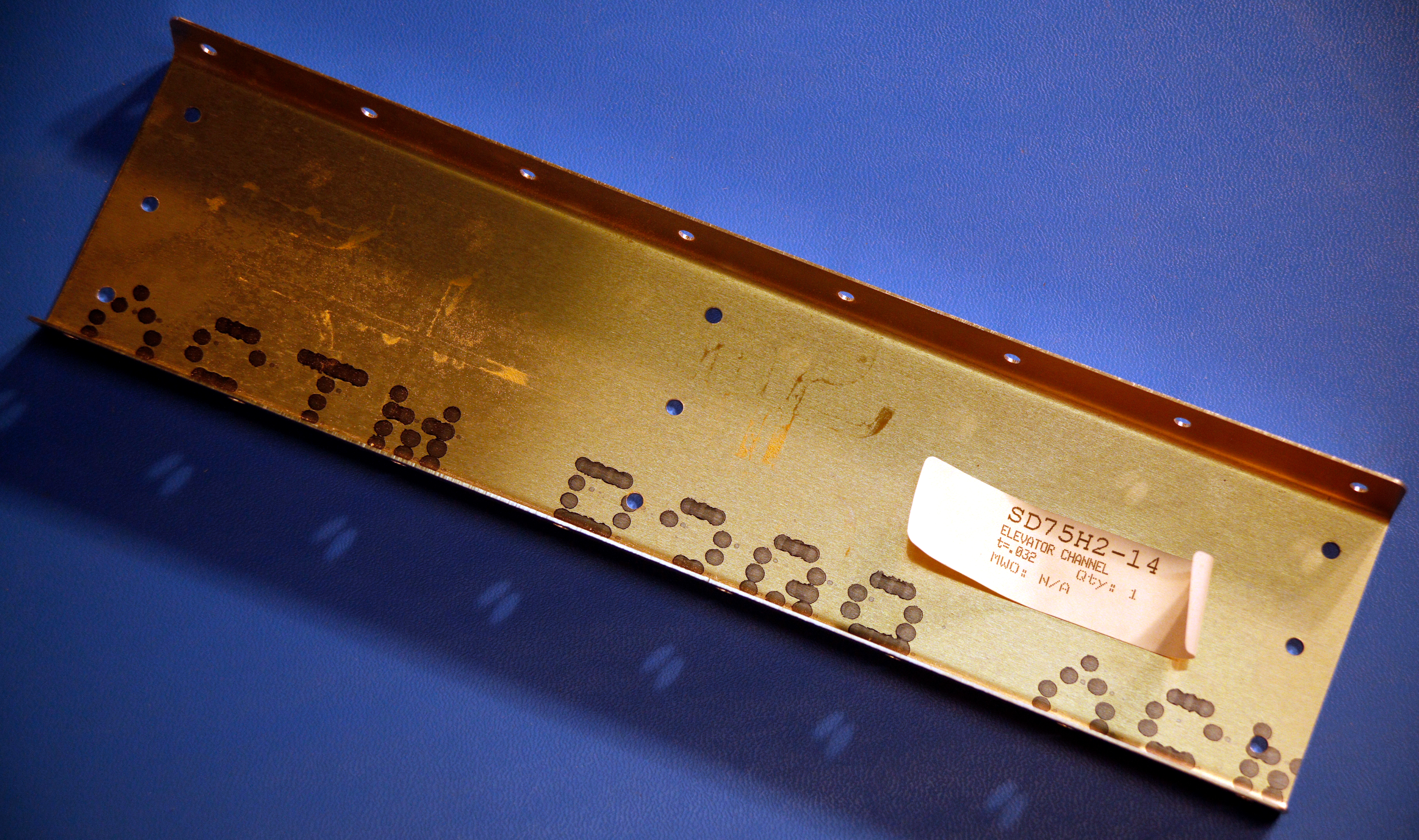

SD75H2-14 – Elevator channel.

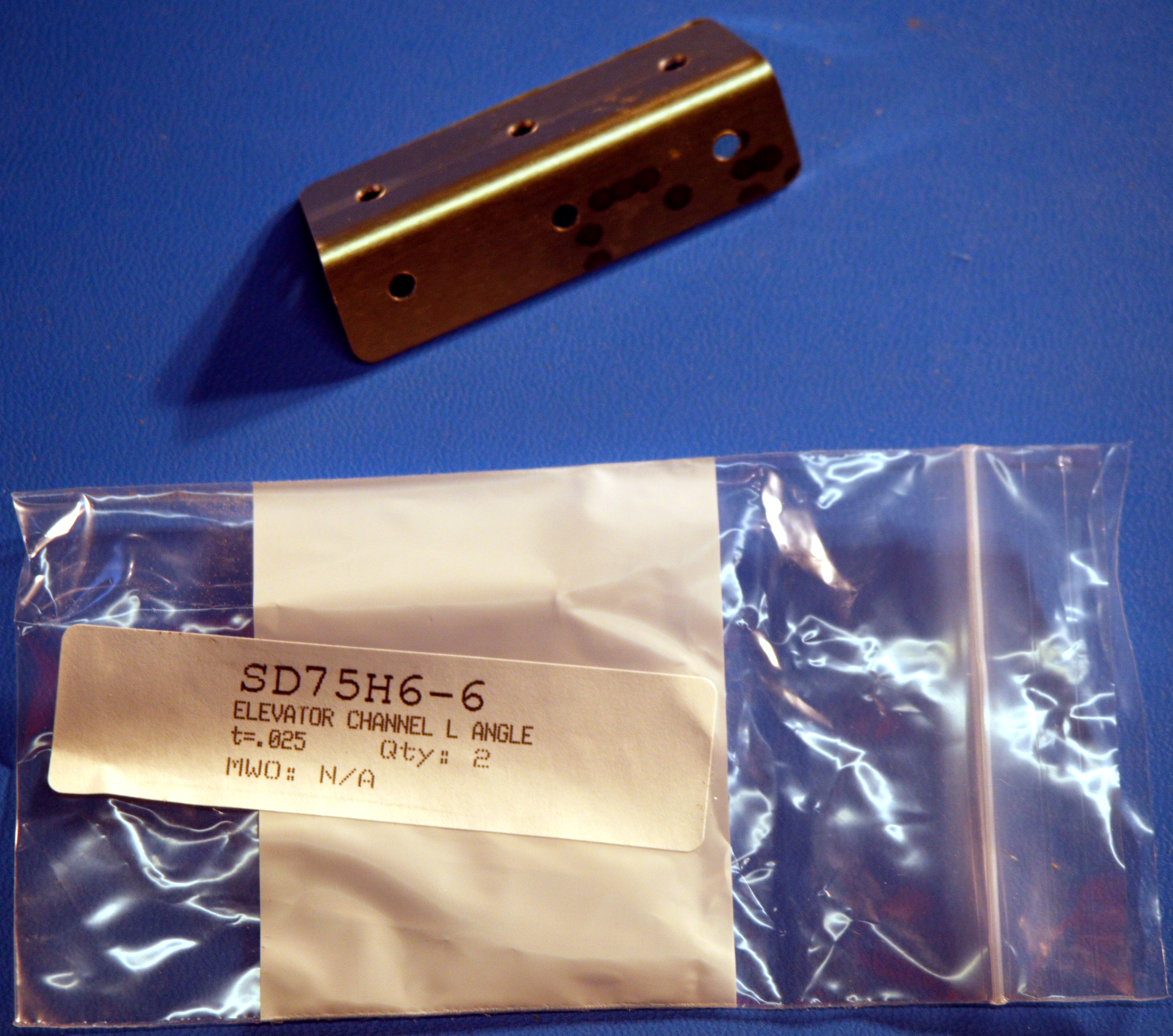

SD75H6-6 – Elevator channel L angle, qty 2.

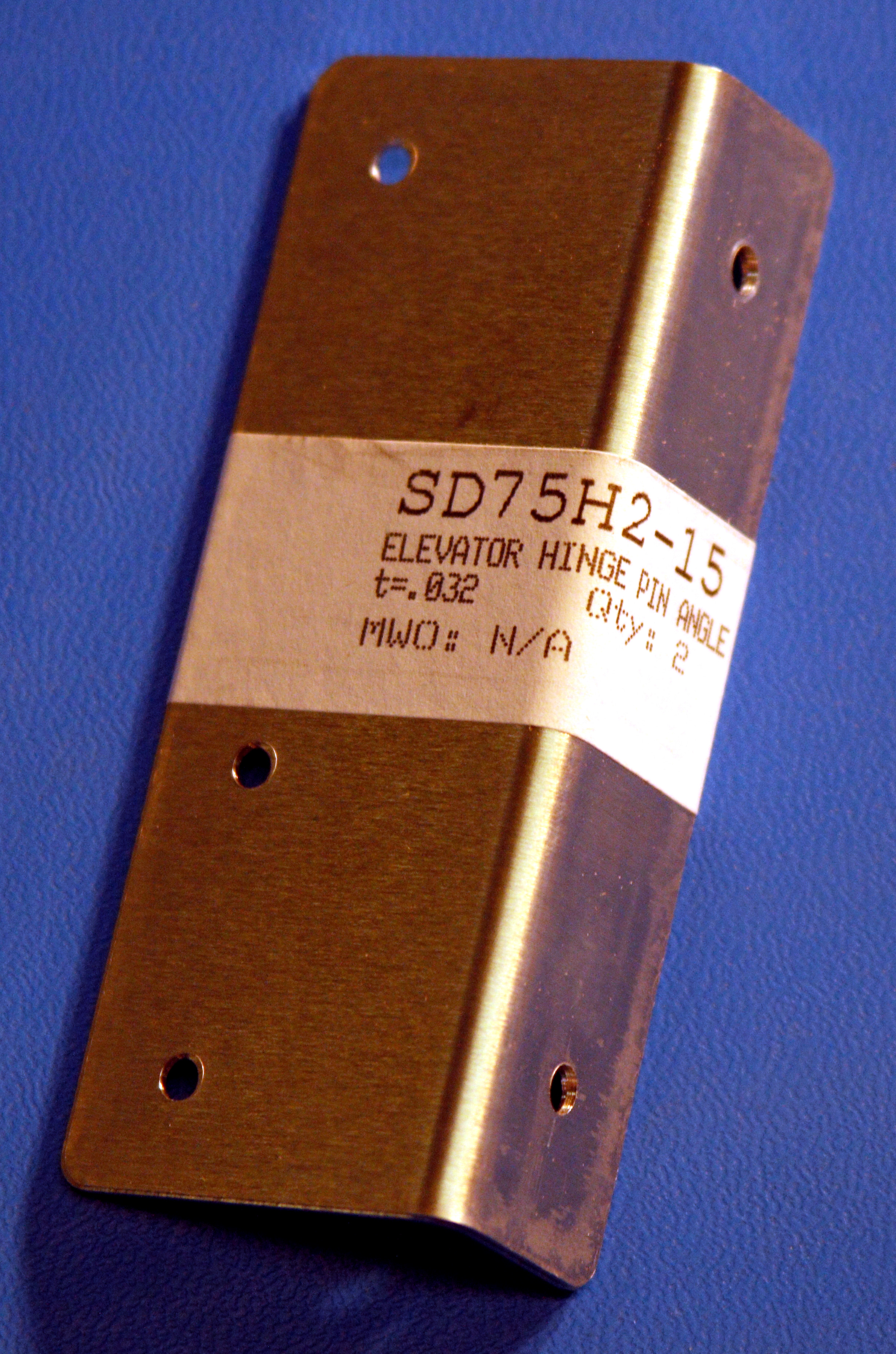

SD75H2-15 – Elevator hinge pin angle, qty 2.

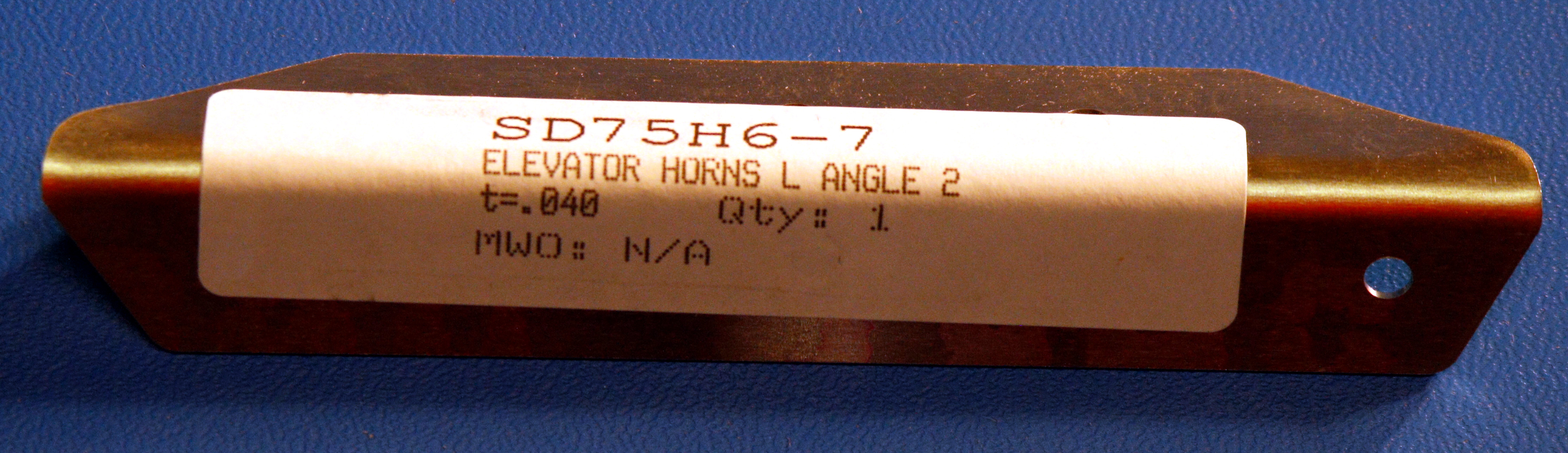

SD75H6-7 – Elevator horns L angle.

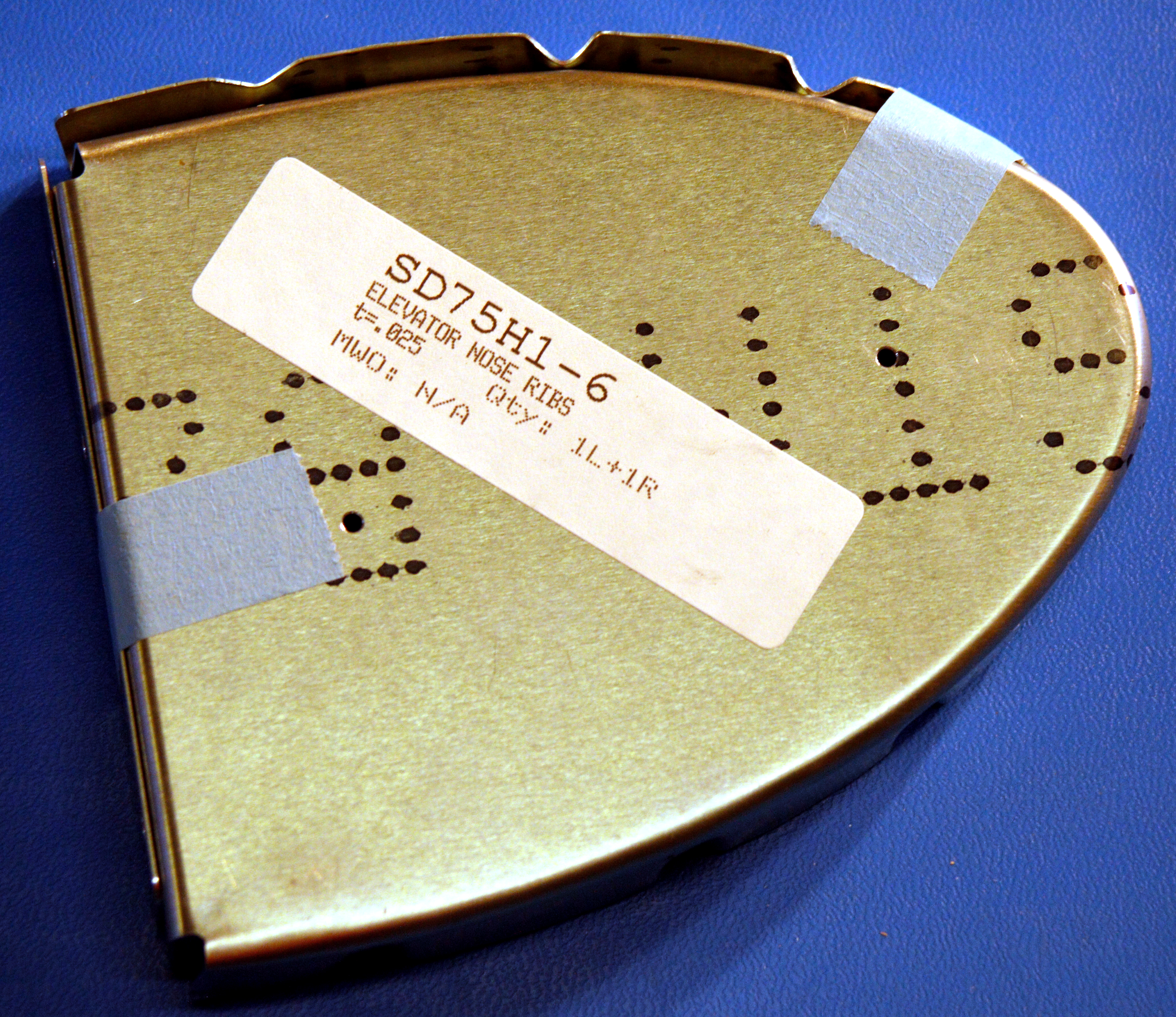

SD75H1-6 – Elevator nose ribs, 1L + 1R.
SD75H6-2 – Elevator nose skin, 1L + 1R.

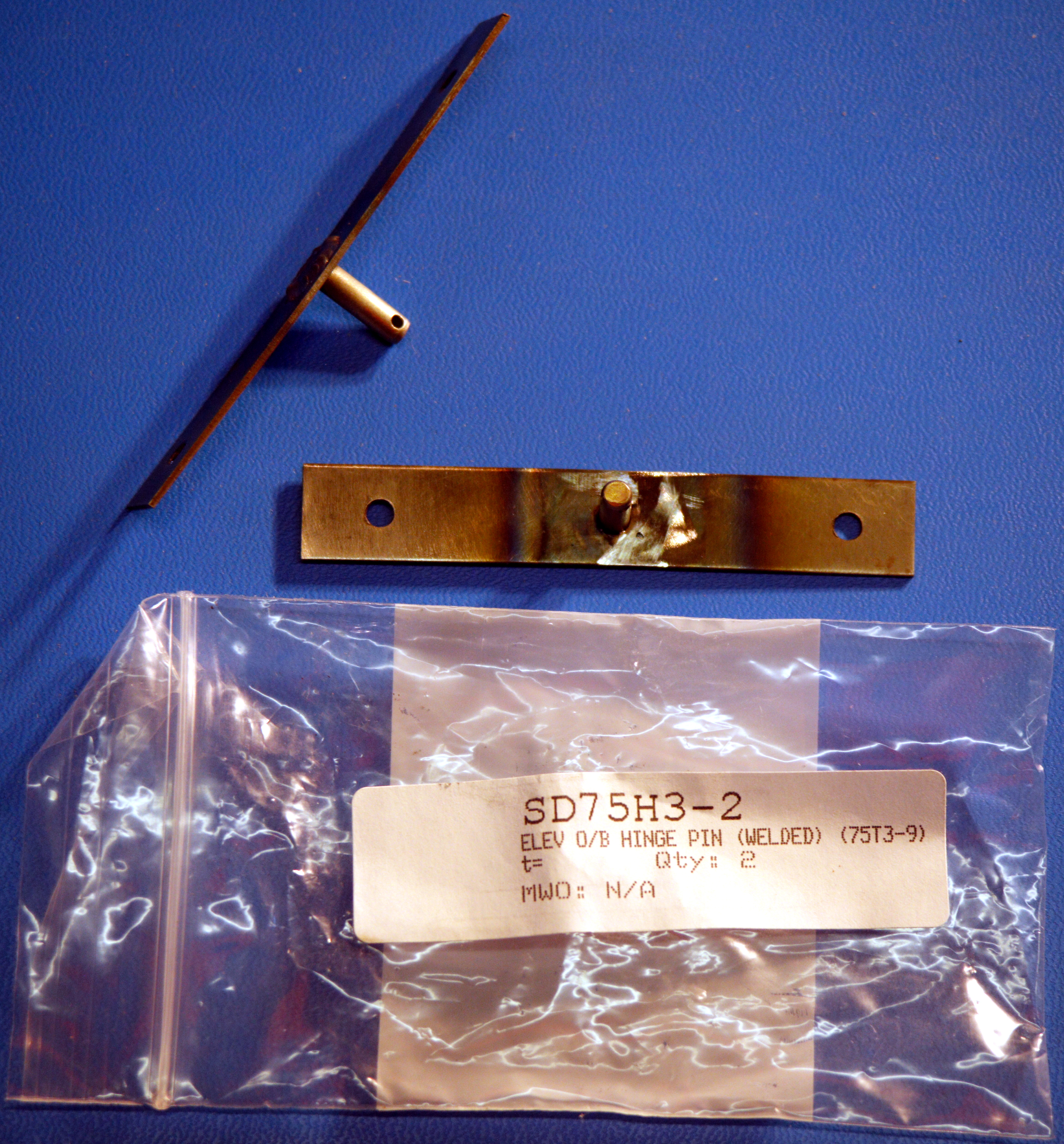

SD75H3-2 – Elev O/B hinge pin, qty 2.

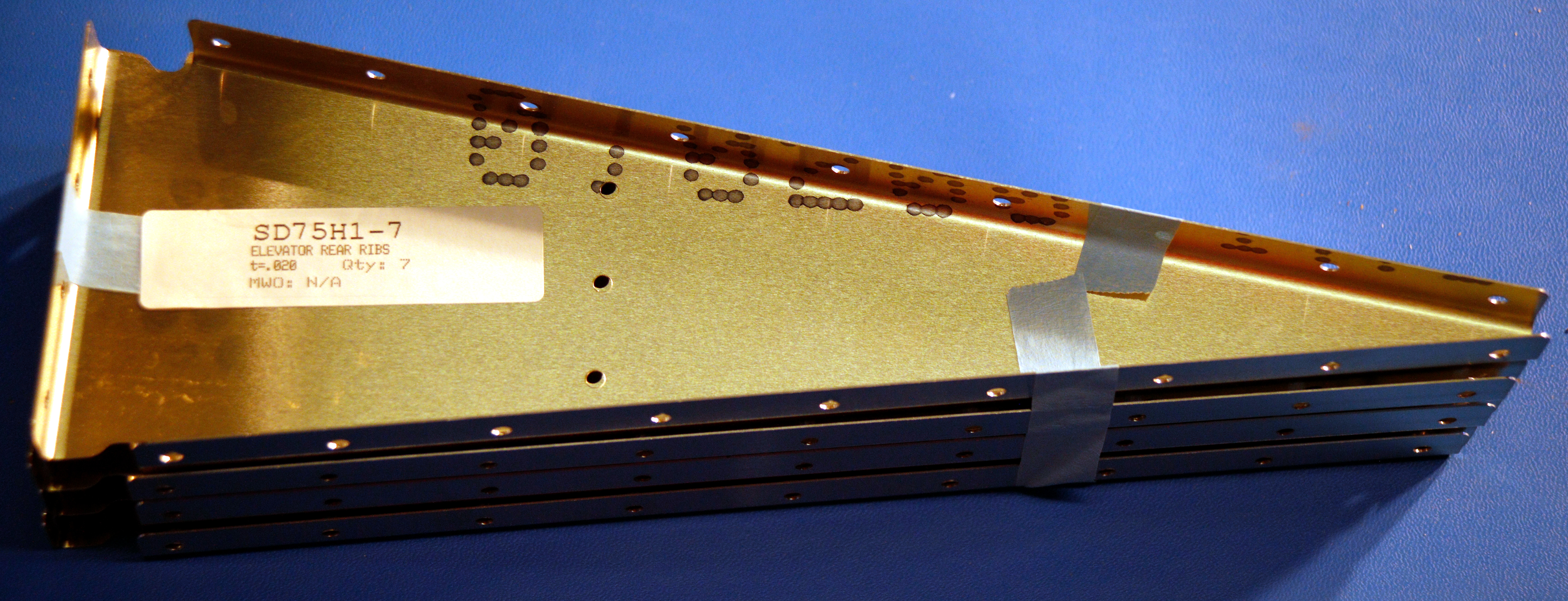

SD75H1-7 – Elevator rear ribs, qty 7.

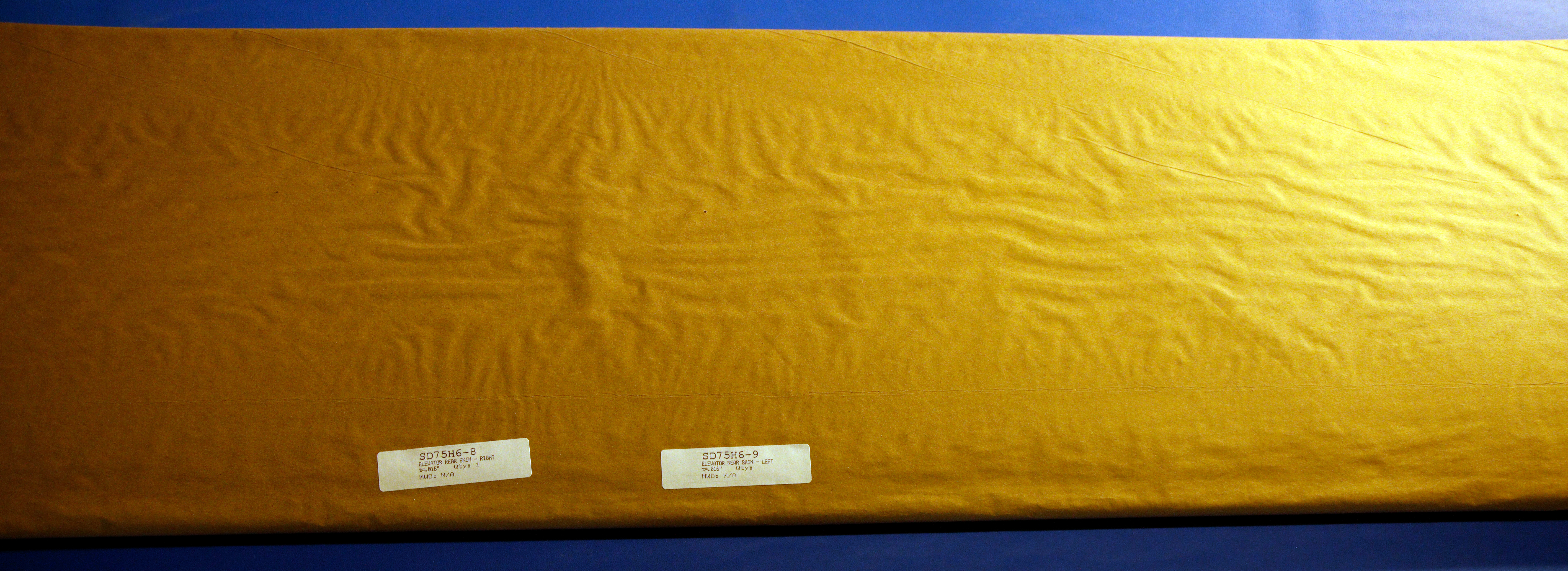

SD75H6-8 – Elevator rear skin - right.
SD75H6-9 – Elevator rear skin - left.

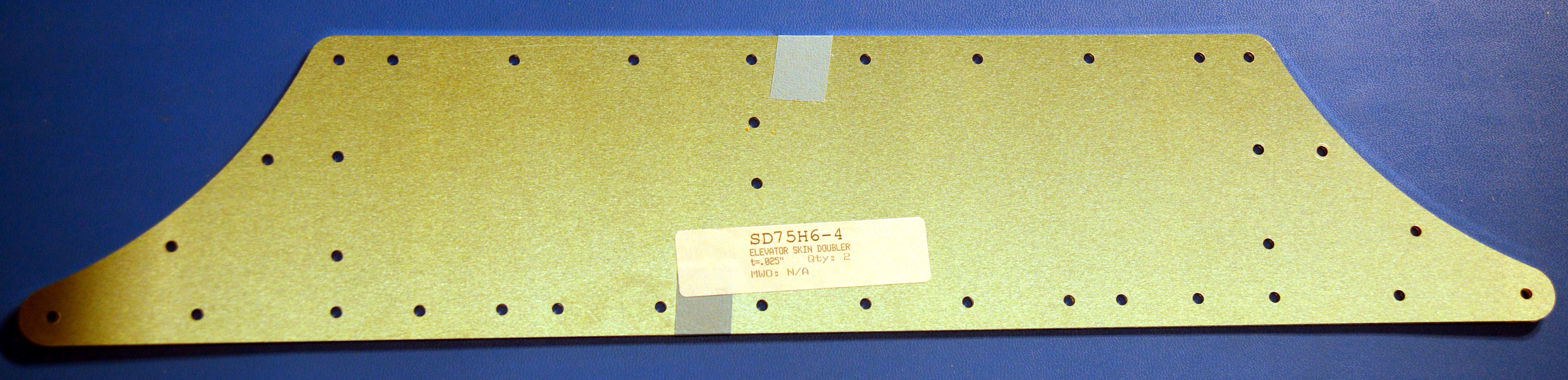

SD75H6-4 – Elevator skin doubler, qty 2.

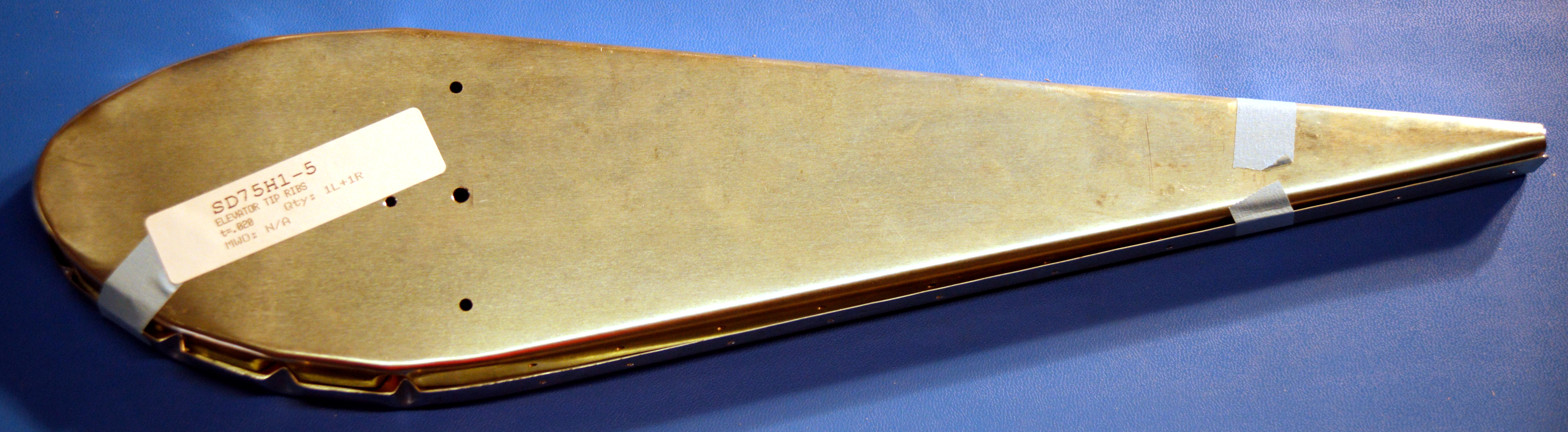

SD75H1-5 – Elevator tip ribs, 1L + 1R.

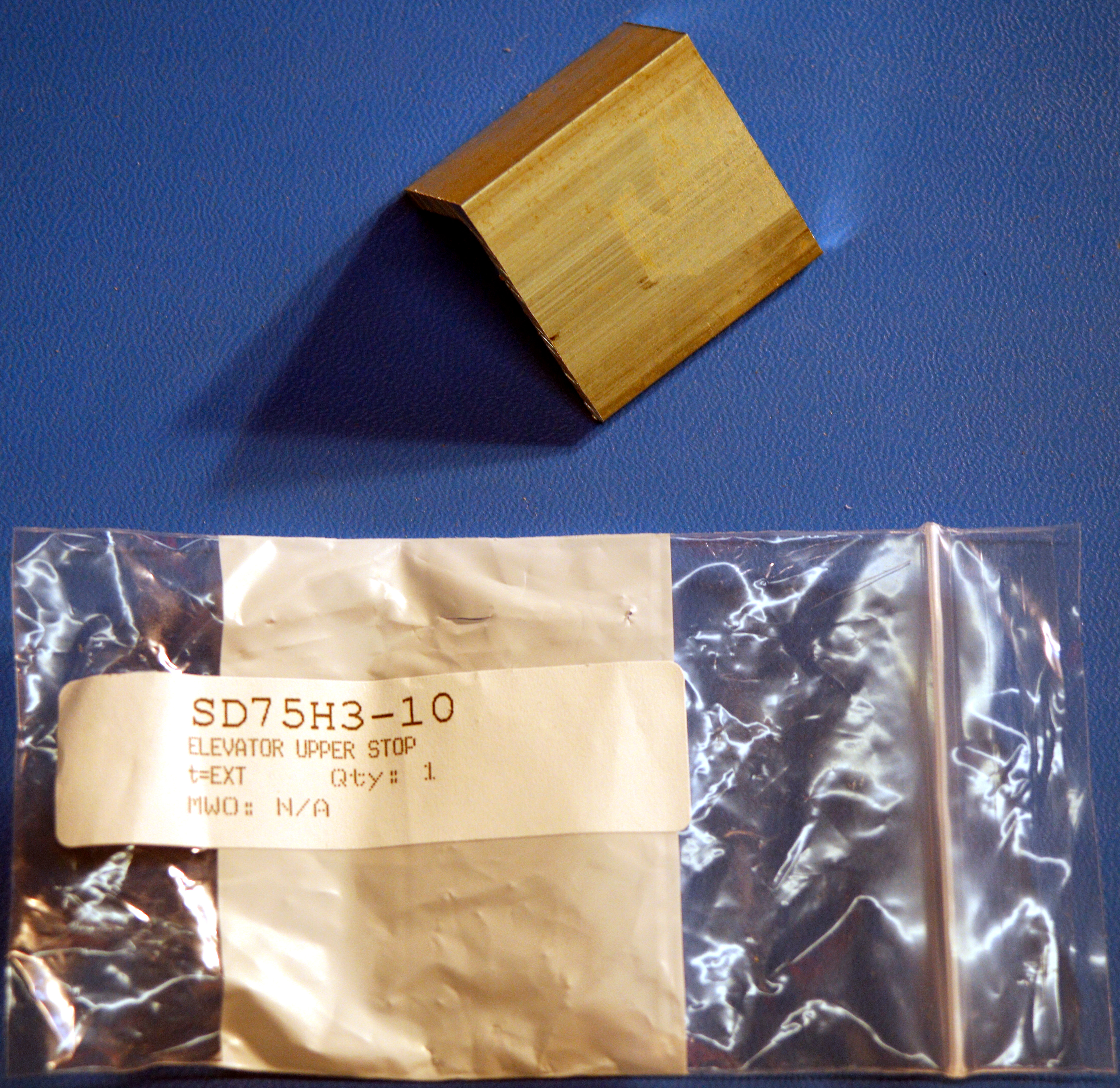

SD75H3-10 – Elevator upper stop.

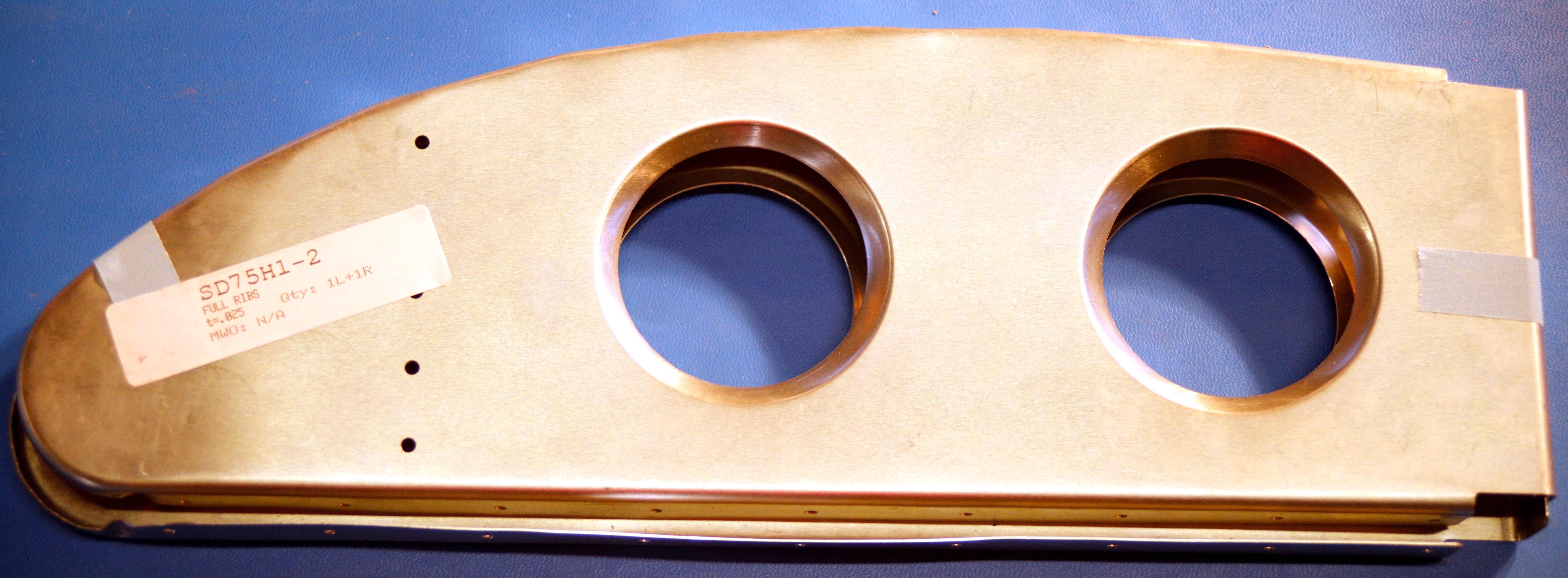

SD75H1-2 – Full ribs, 1L + 1R.

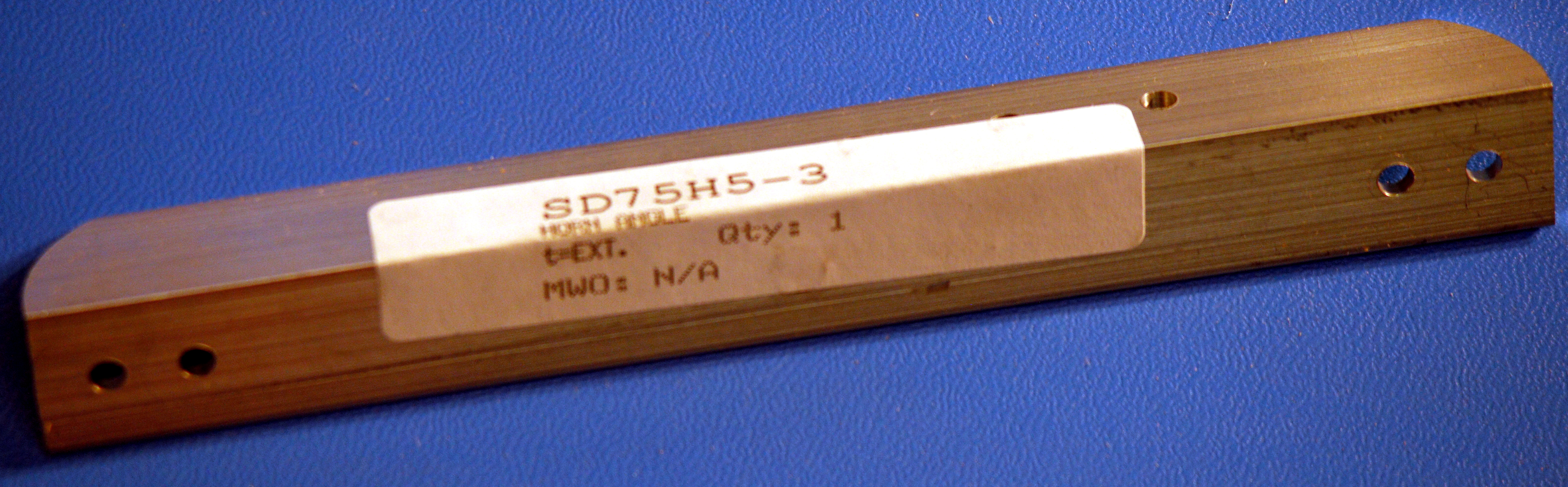

SD75H5-3 – Horn angle.

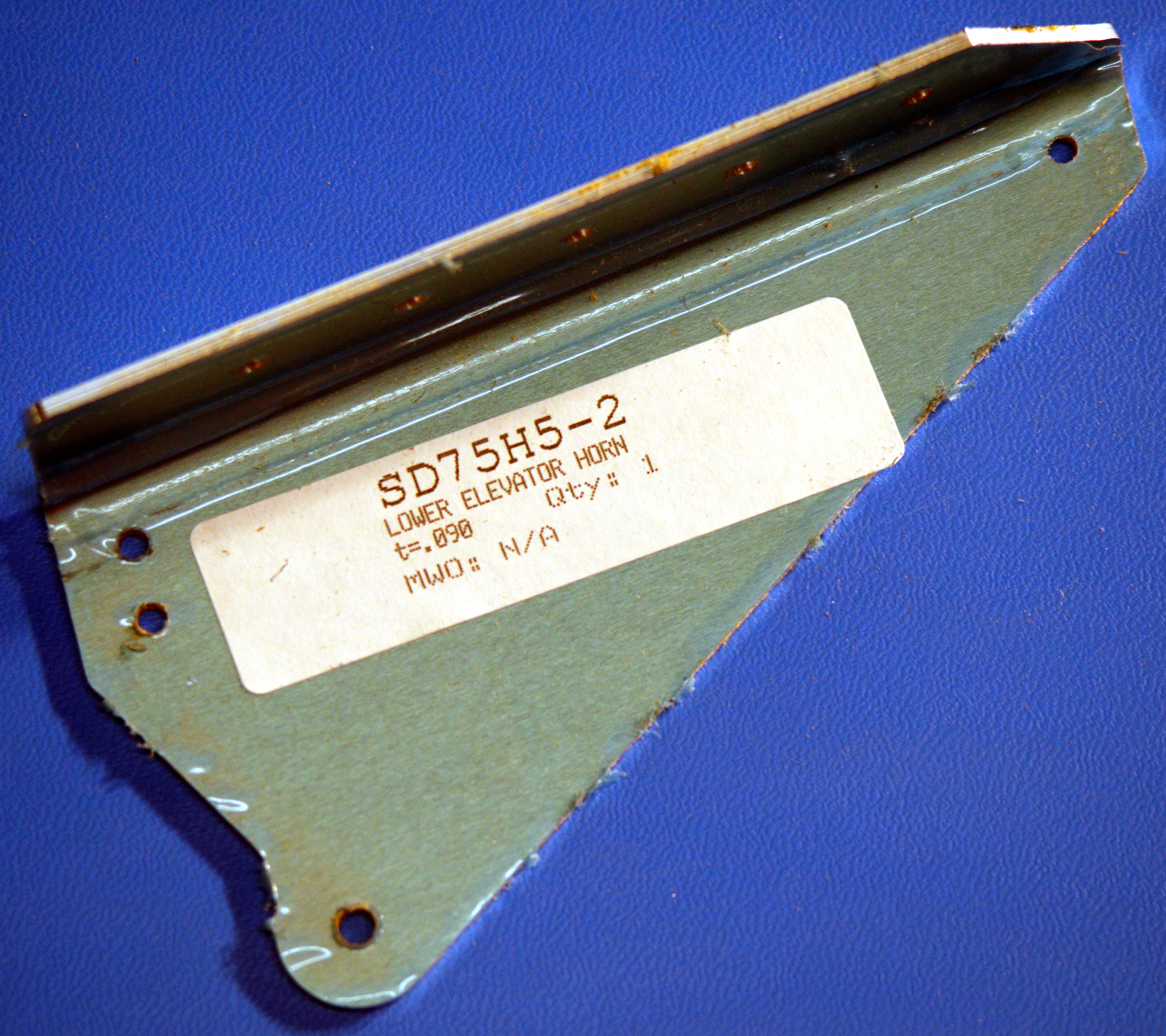

SD75H5-2 – Lower elevator horn.
SD75H2-12 – Stabilizer center hinge bracket.
SD75H2-13 – Stabilizer center hinge gusset.

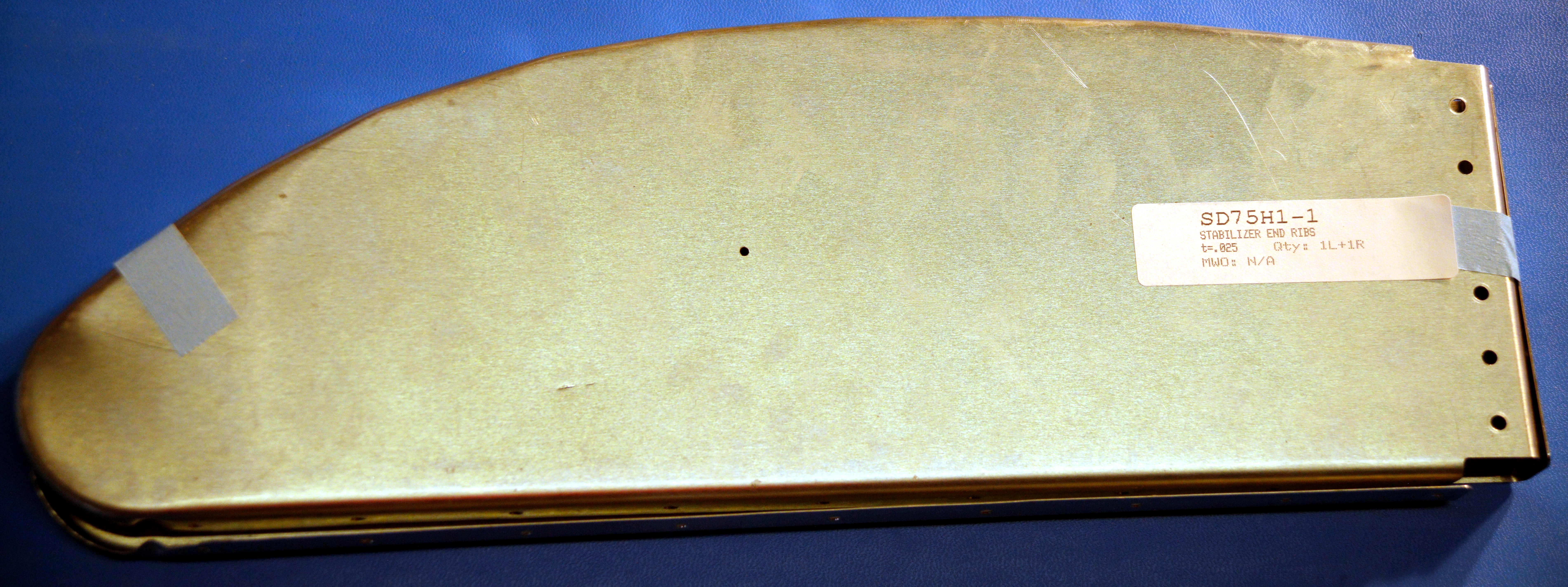

SD75H1-1 – Stabilizer end ribs, 1L + 1R.

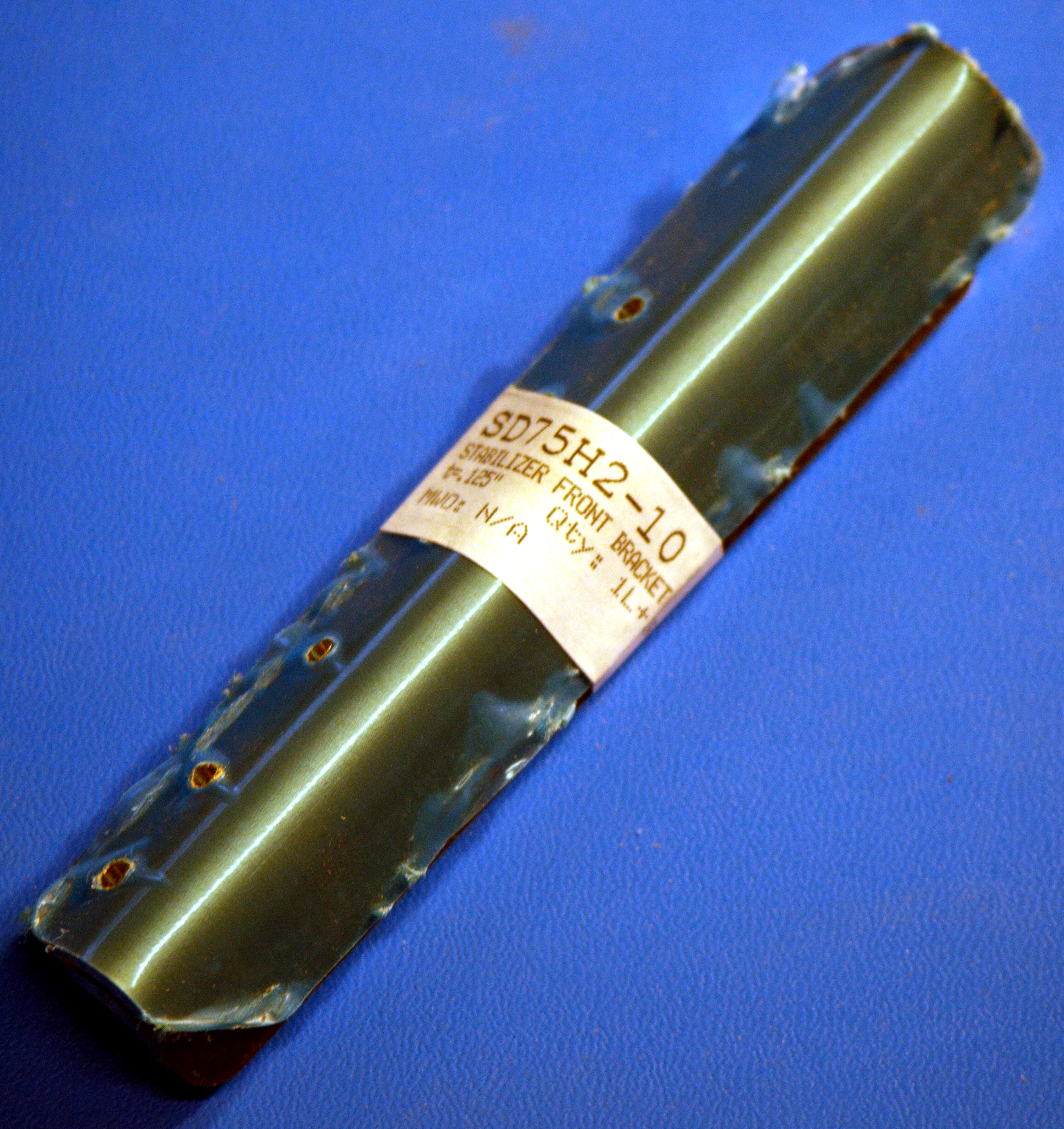

SD75H2-10 – Stabilizer front bracket, 1L + 1R.

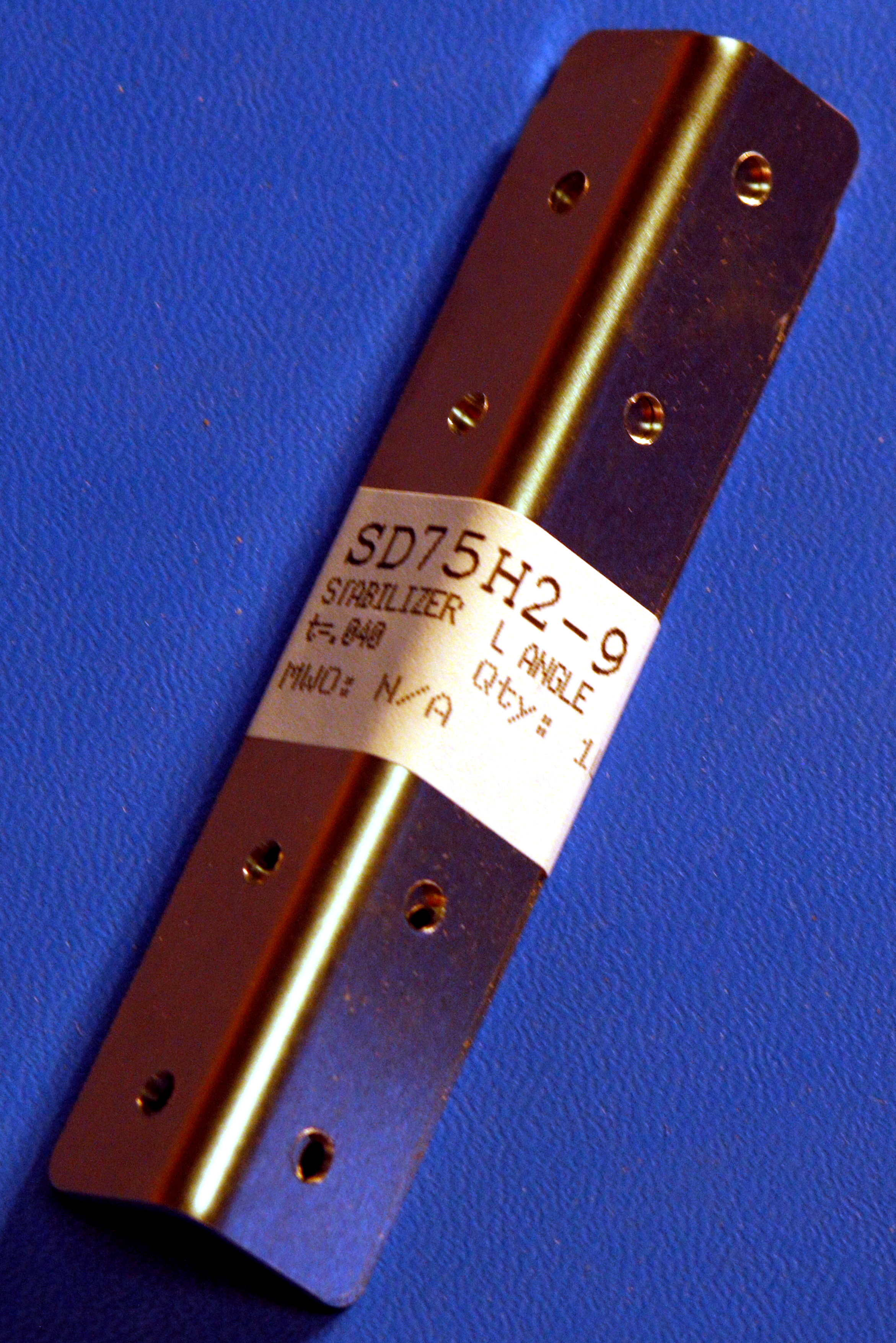

SD75H2-9 – Stabilizer L angle.

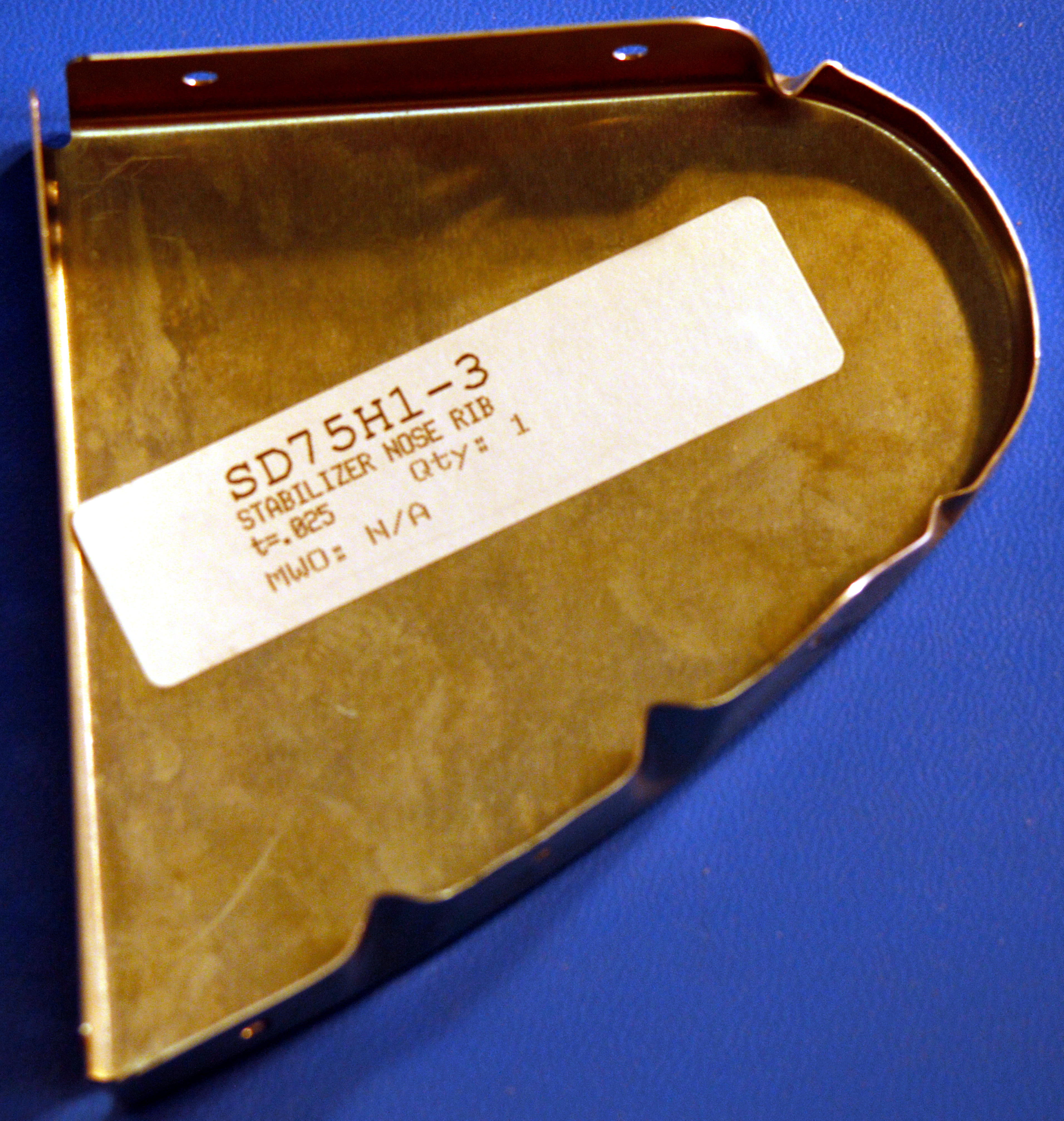

SD75H1-3 – Stabilizer nose rib.

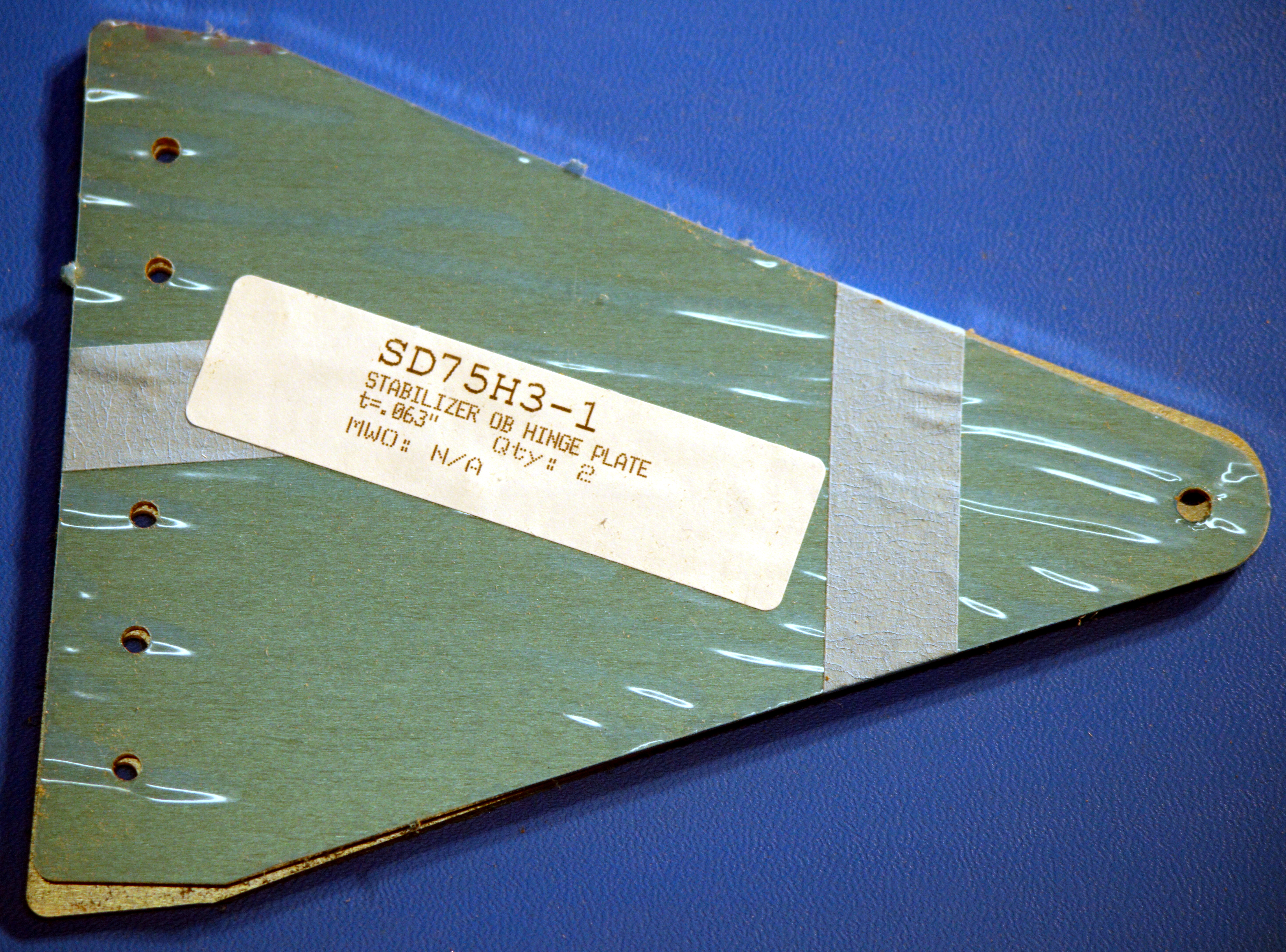

SD75H3-1 – Stabilizer OB hinge plate, qty 2.

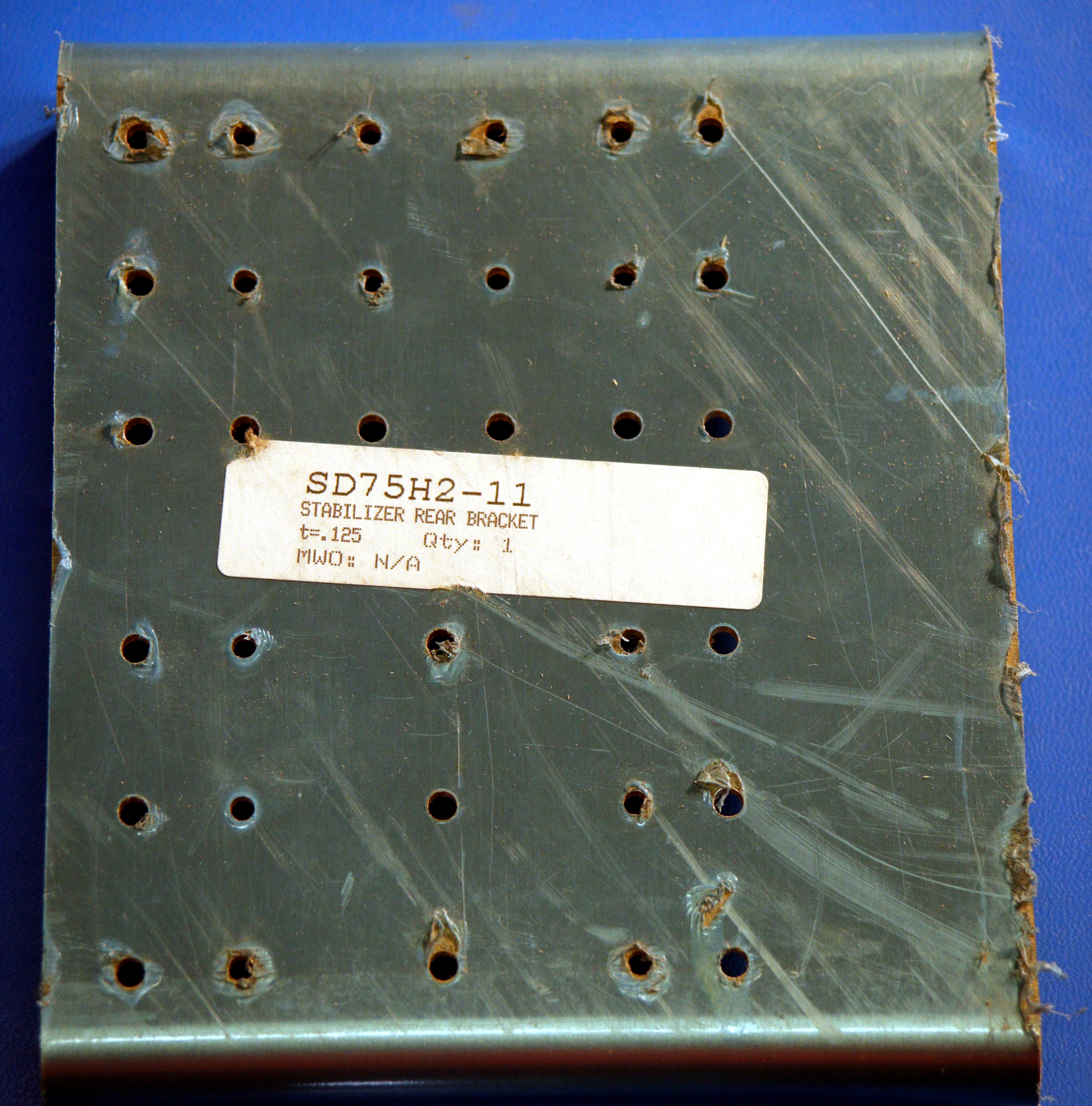

SD75H2-11 – Stabilizer rear bracket.

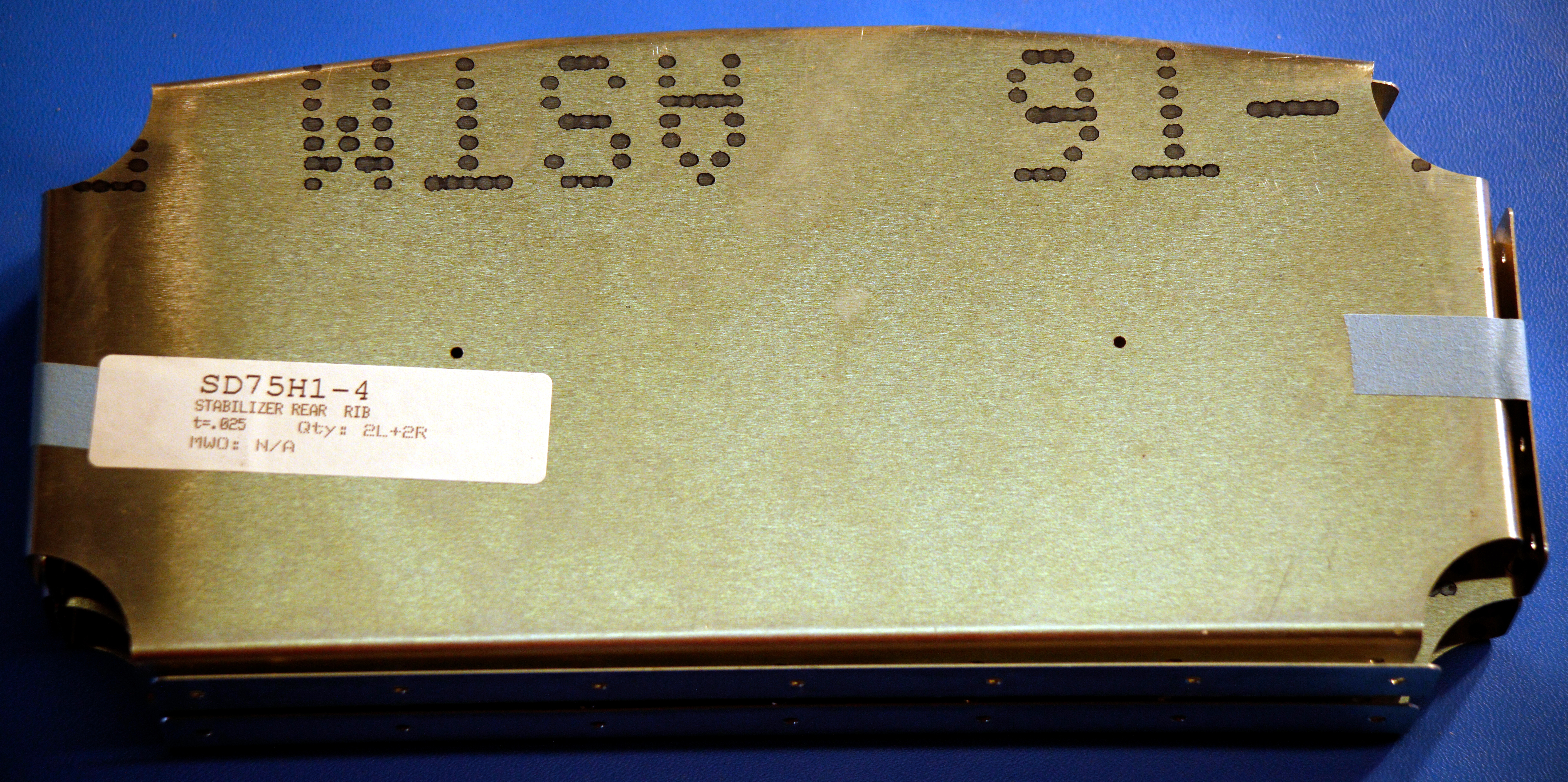

SD75H1-4 – Stabilizer rear rib, 2L + 2R.

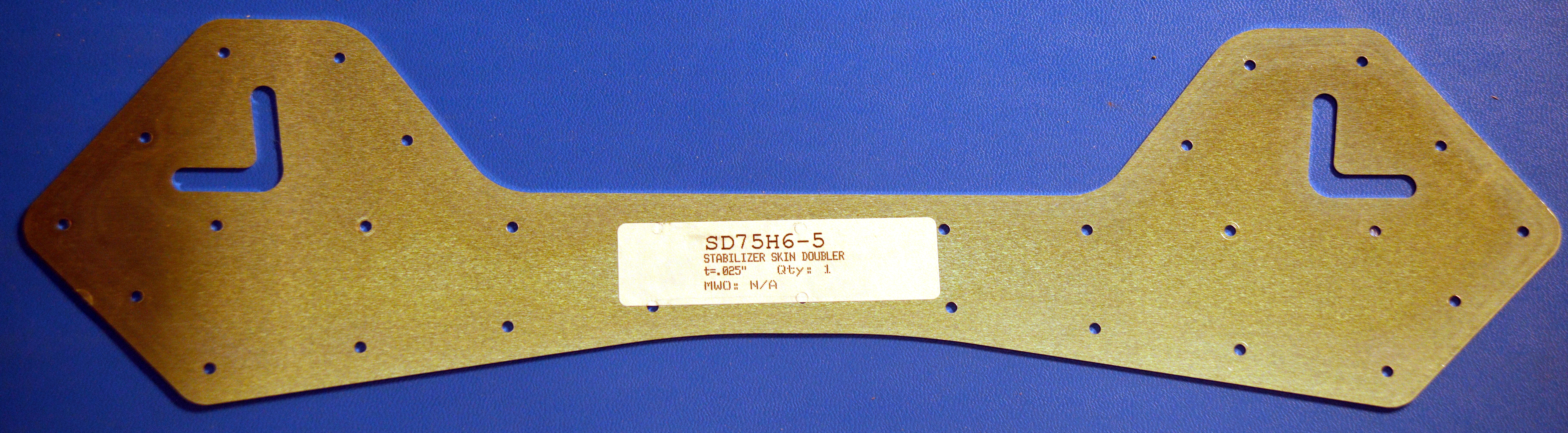

SD75H6-5 – Stabilizer skin doubler.

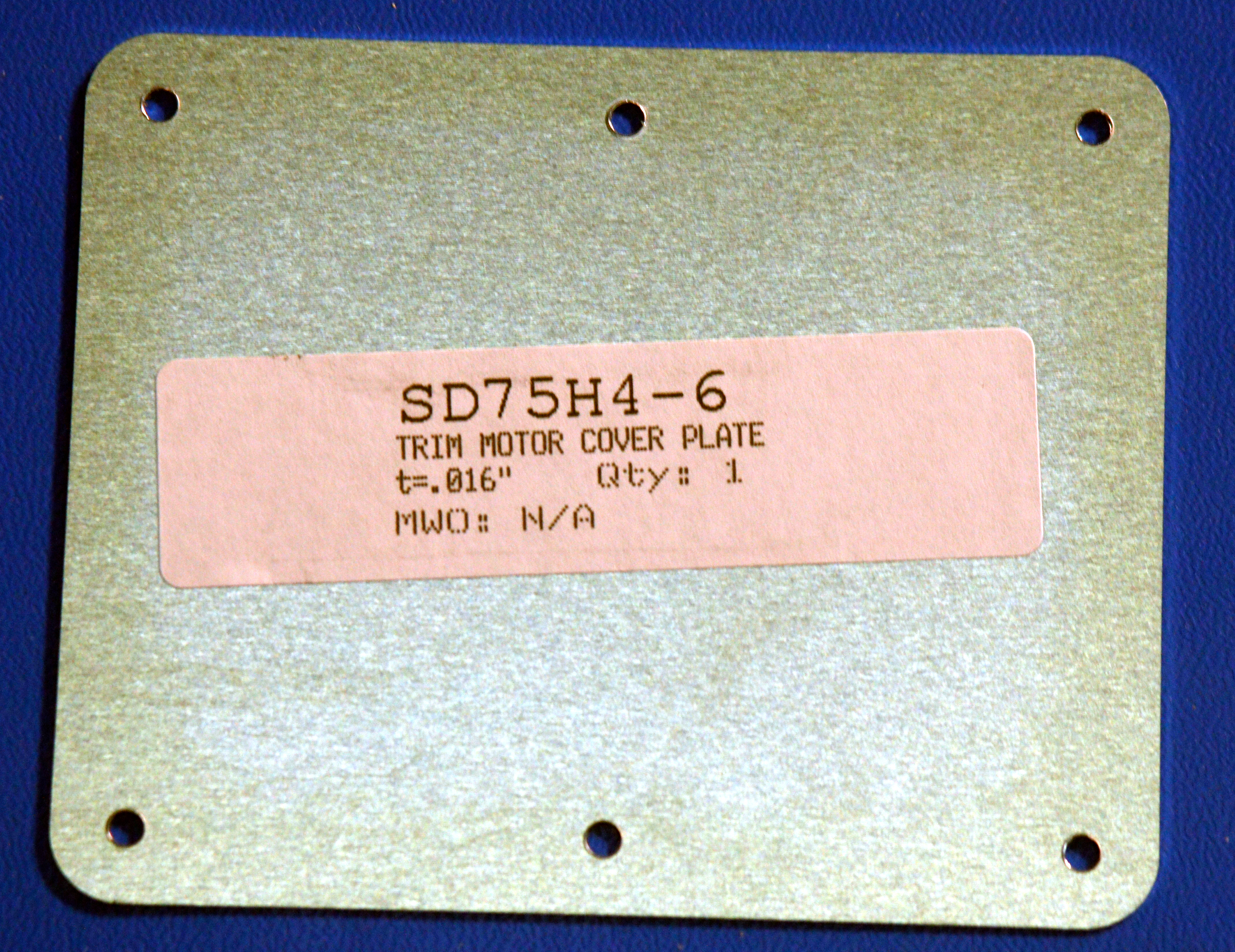

SD75H4-6 – Trim motor cover plate.

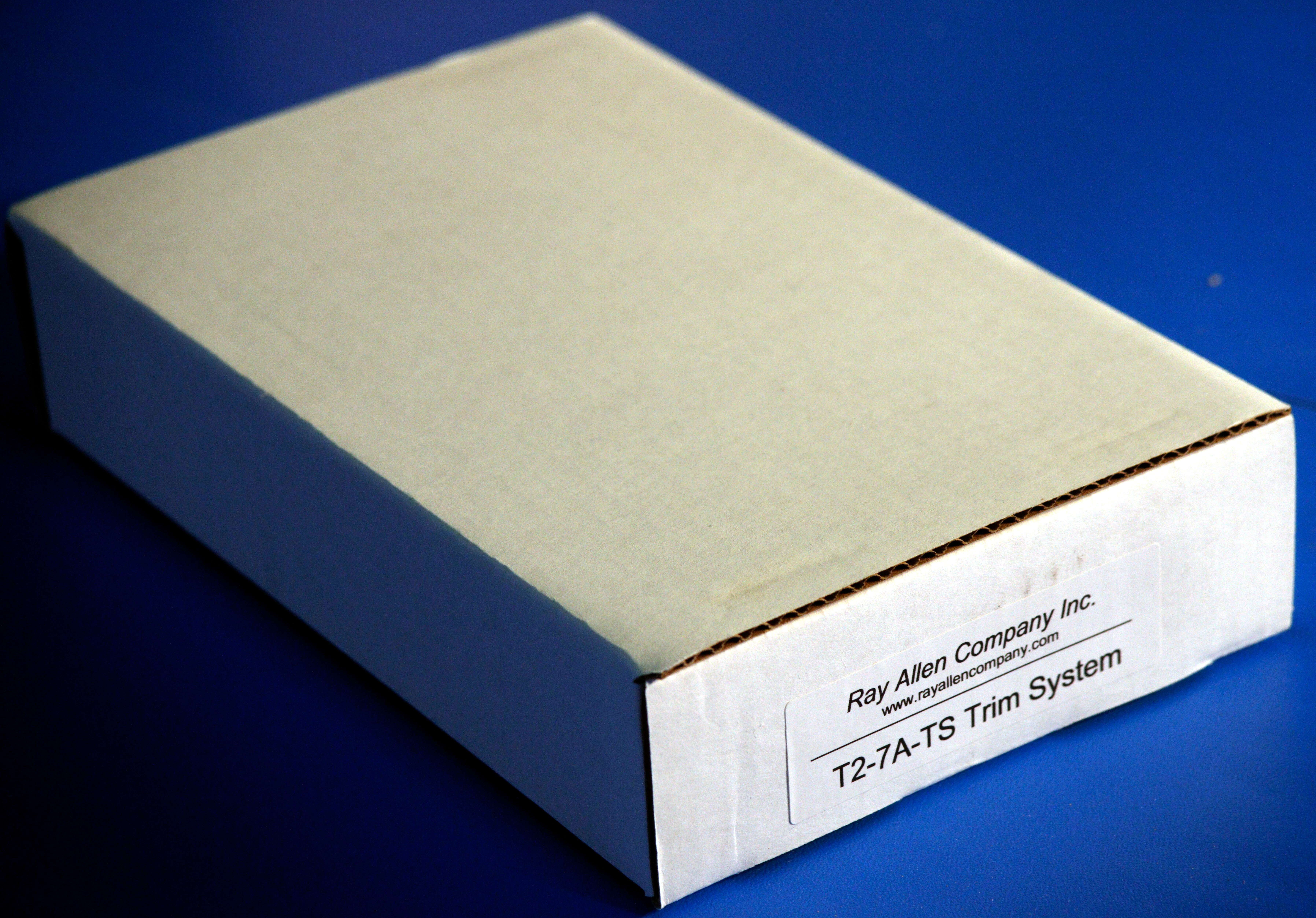

T2-7A-TS – Trim system box.

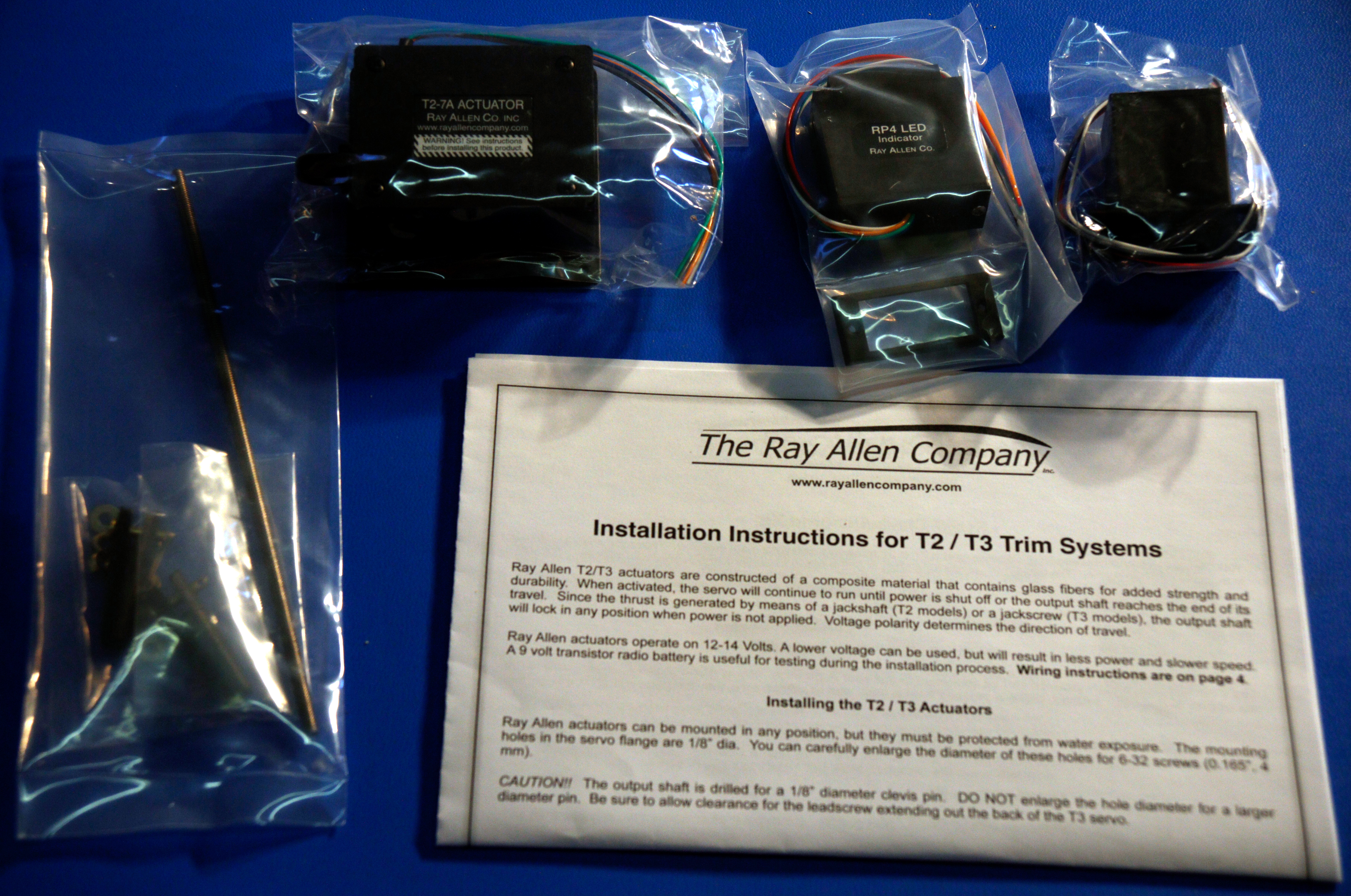

T2-7A-TS – Trim system components.

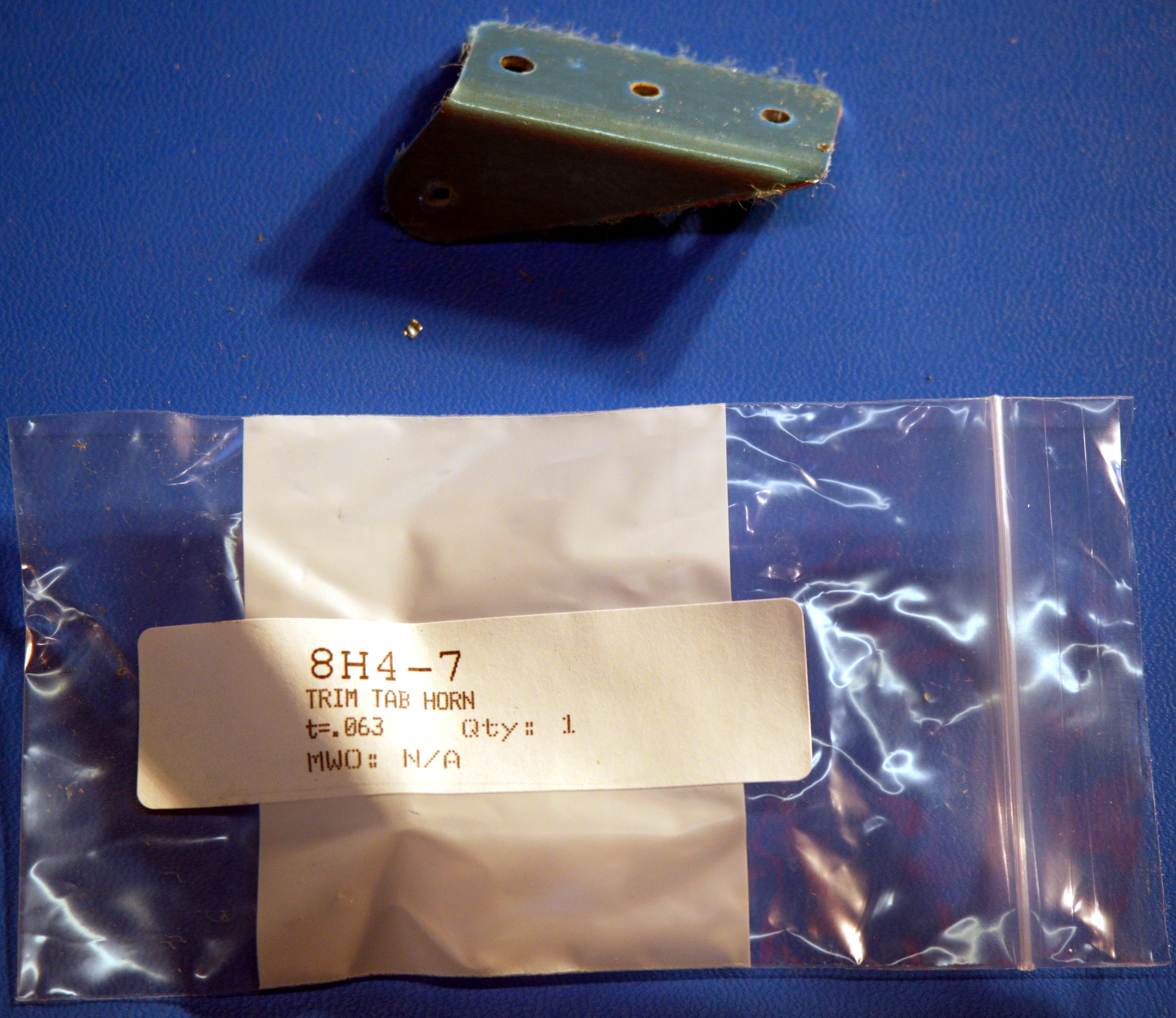

8H4-7 – Trim tab horn.

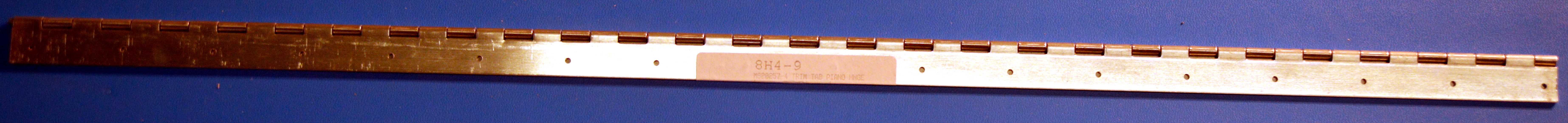

8H4-9 – Trim tab piano hinge.
8H4-10C – Trim tab skin center doubler.

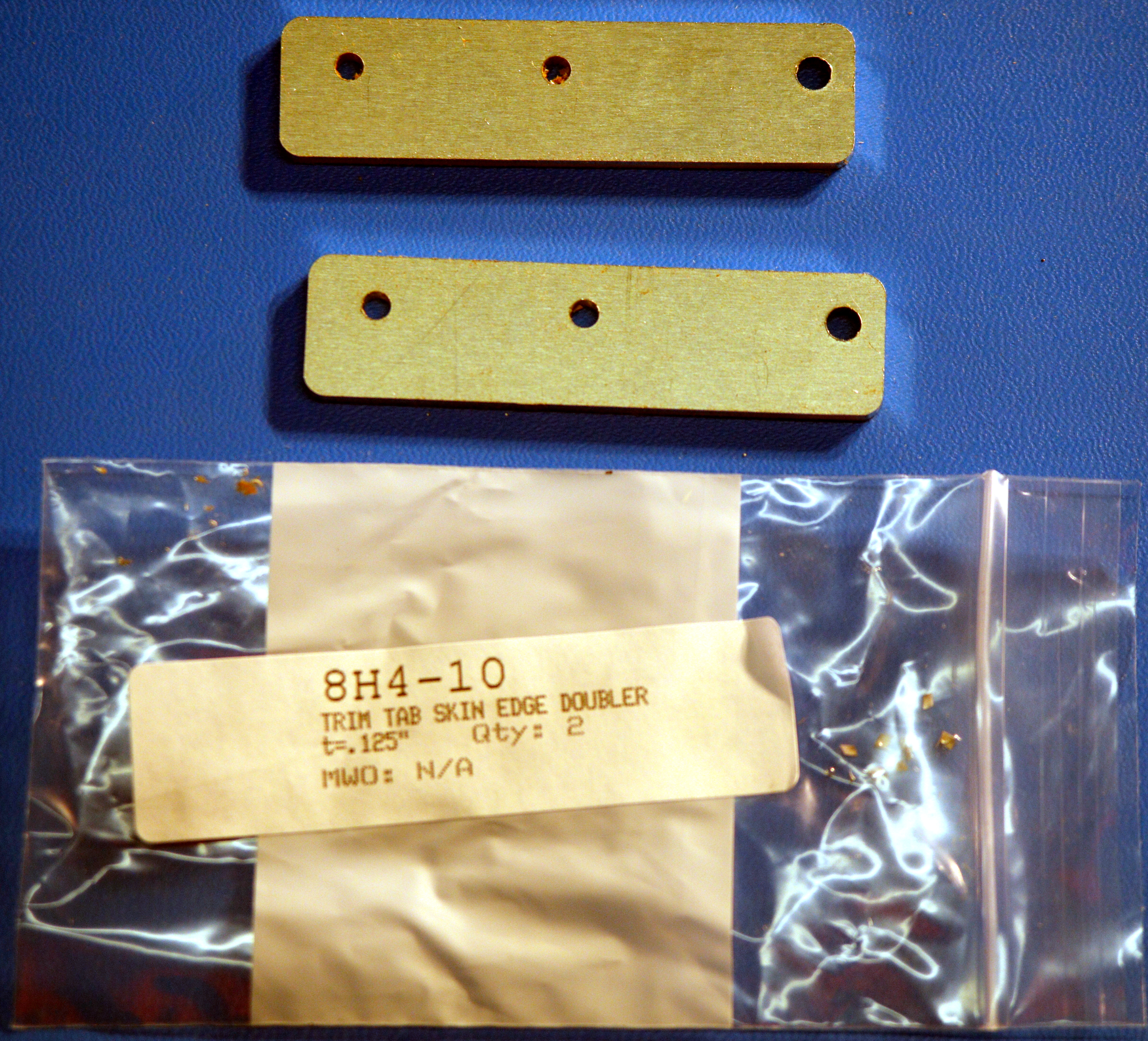

8H4-10 – Trim tab skin edge doubler, qty 2.

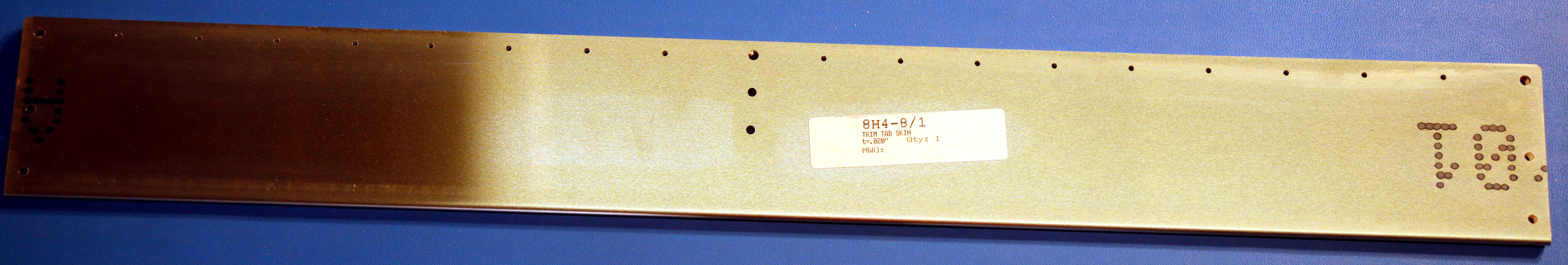

8H4-8/1 – Trim tab skin.

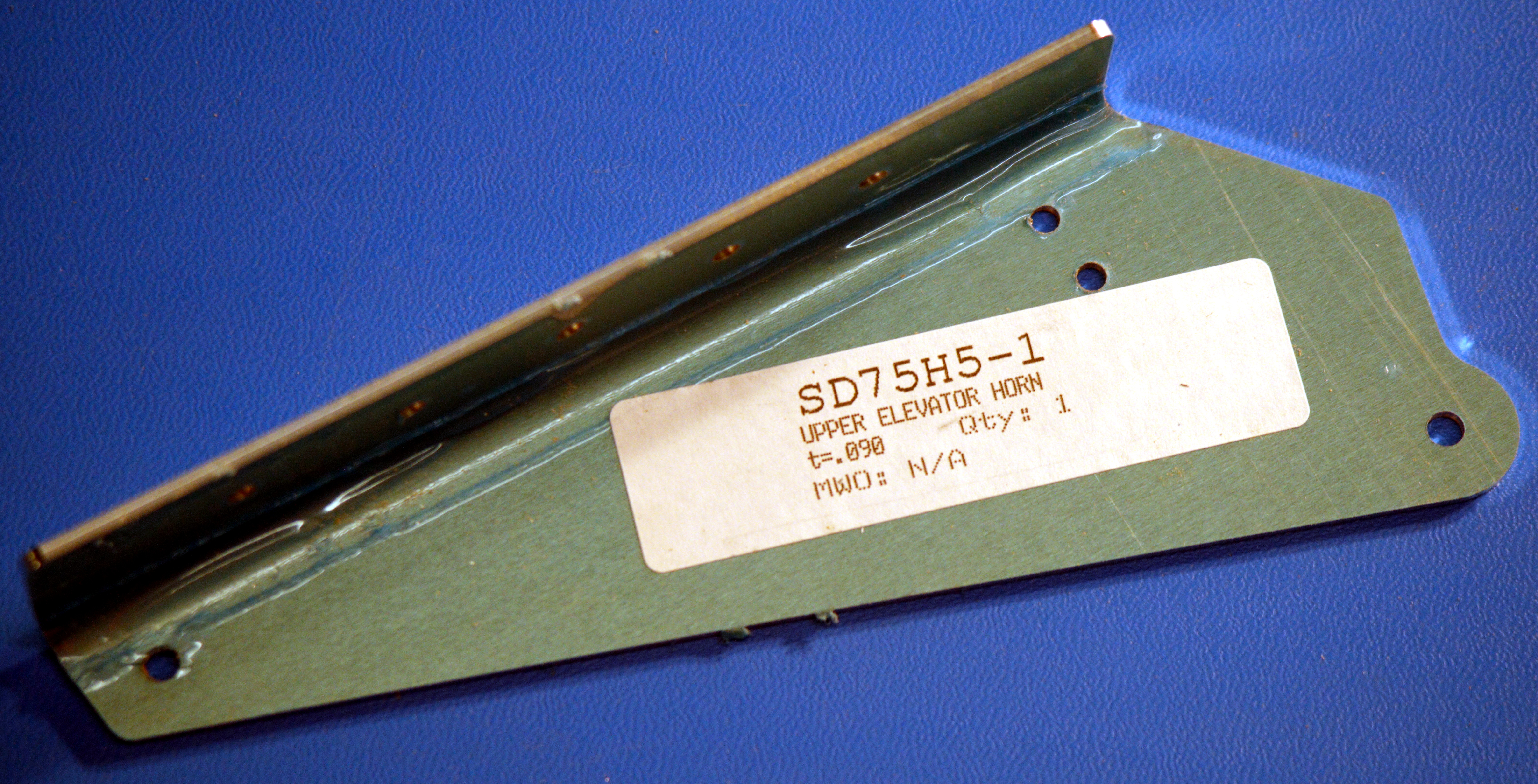

SD75H5-1 – Upper elevator horn.

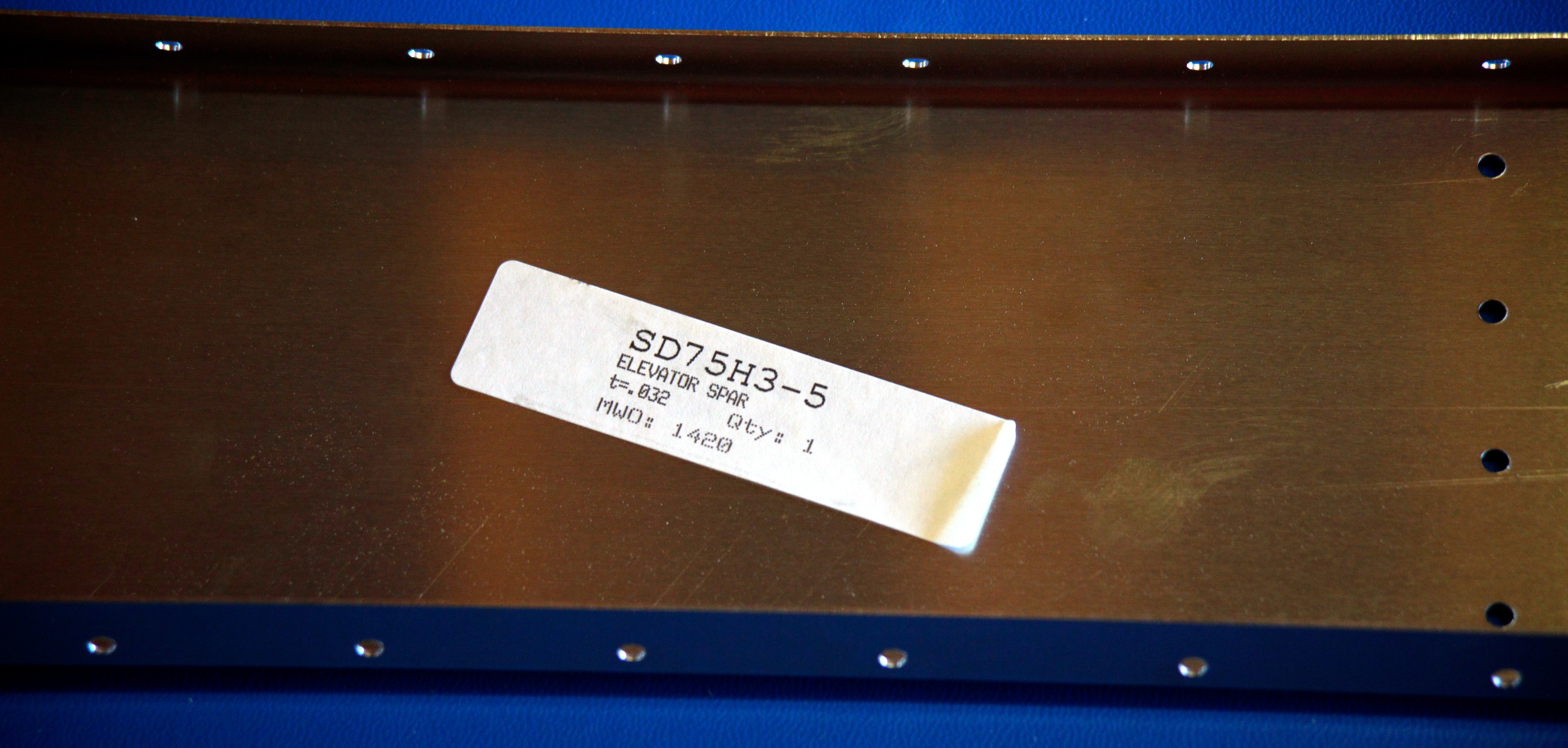

SD75H3-5 – Elevator spar label.

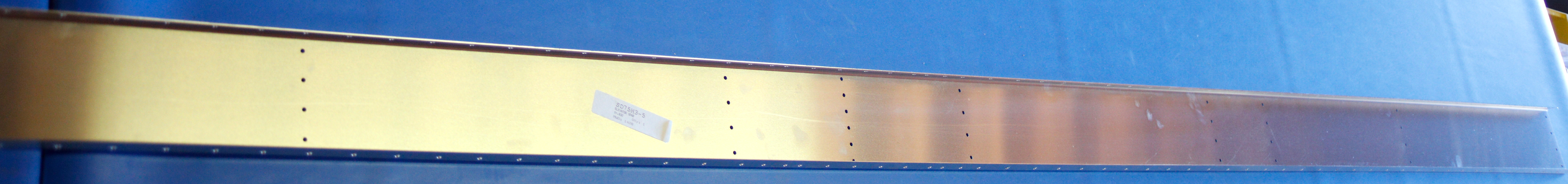

SD75H3-5 – Elevator spar.

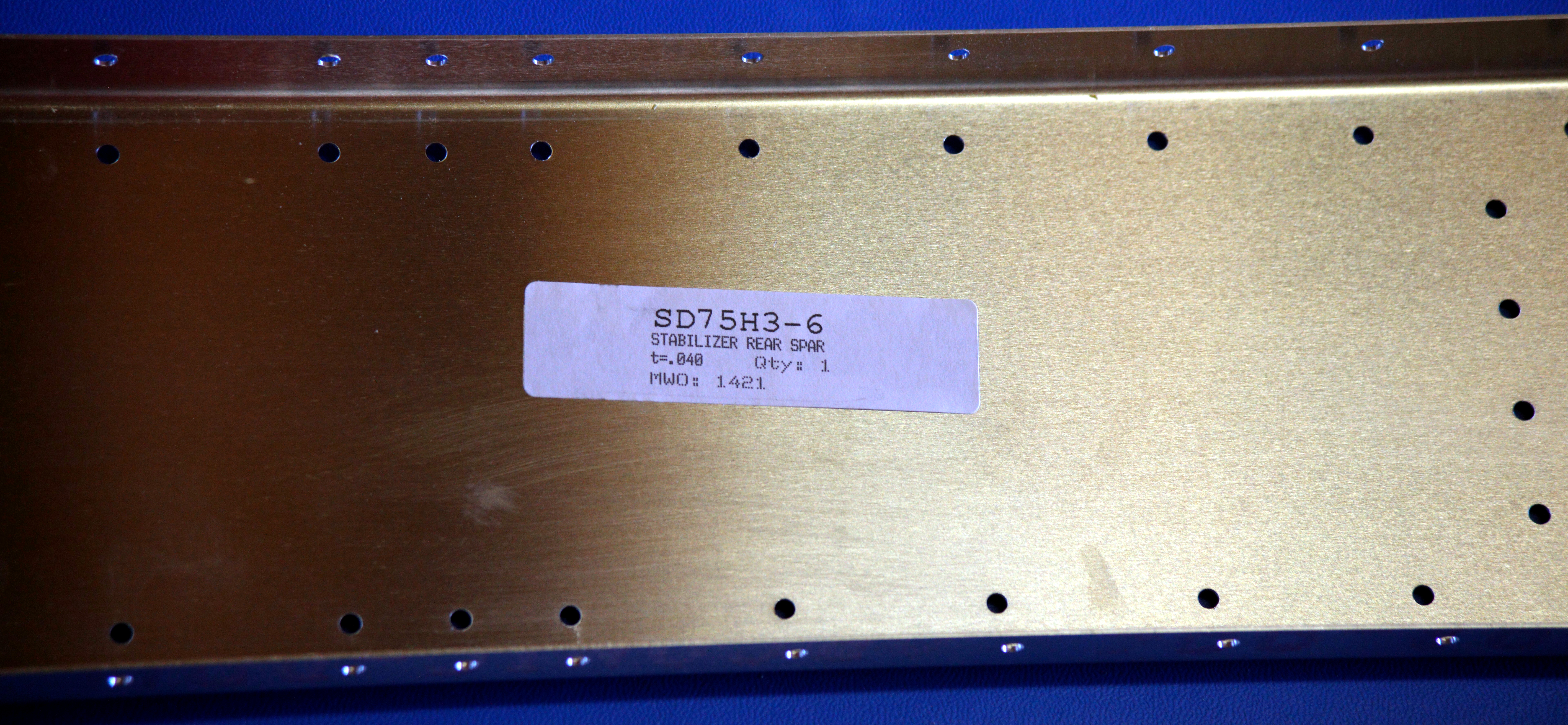

SD75H3-6 – Stabilizer rear spar label.

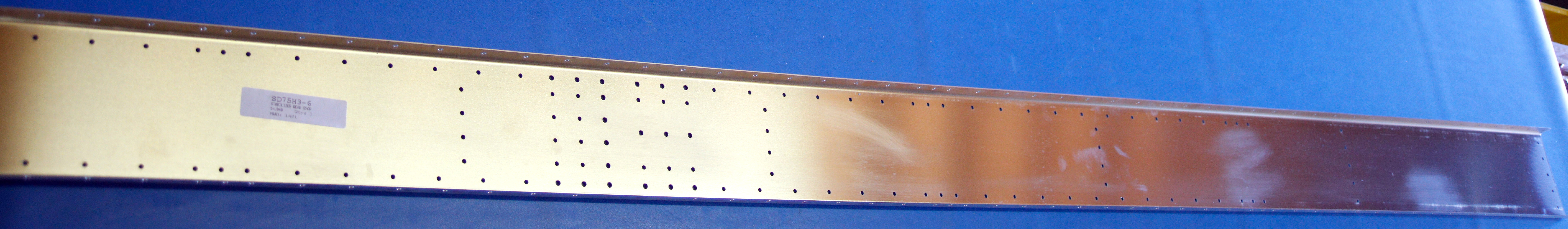

SD75H3-6 – Stabilizer rear spar.
SD75H3-7 – Stabilizer front spar label.

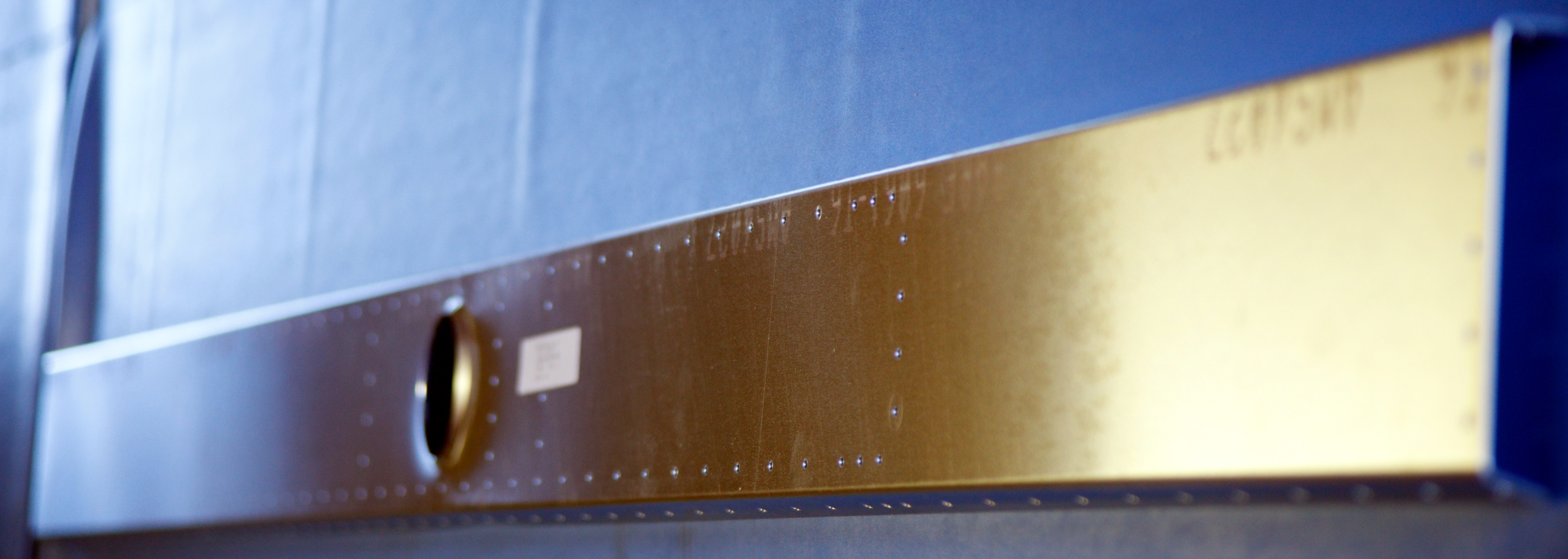

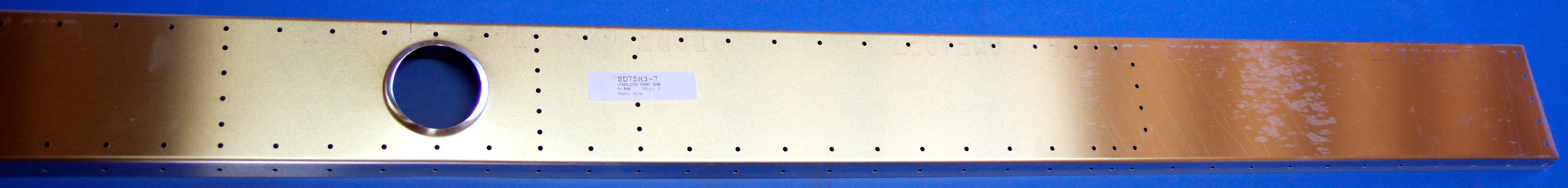

SD75H3-7 – Stabilizer front spar.
SD75H3-7 – Stabilizer front spar.

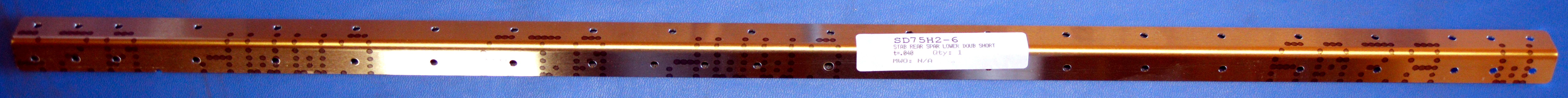

SD75H2-6 – Stab rear spar lower doub short.

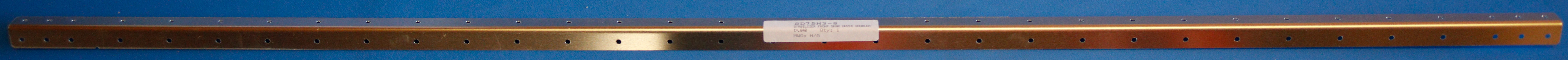

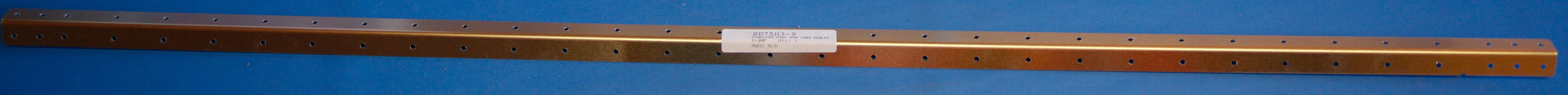

SD75H3-9 – Stabilizer front spar lower doubler.
SD75H3-8 – Stabilizer front spar upper doubler.

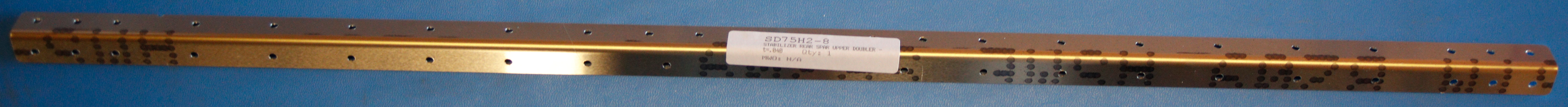

SD75H2-8 – Stabilizer rear spar upper doubler. Note duplicate name with SD75H2-7.

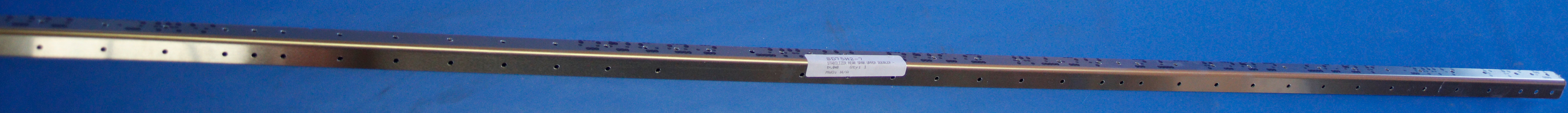

SD75H2-7 – Stabilizer rear spar upper doubler. Note duplicate name with SD75H2-8.

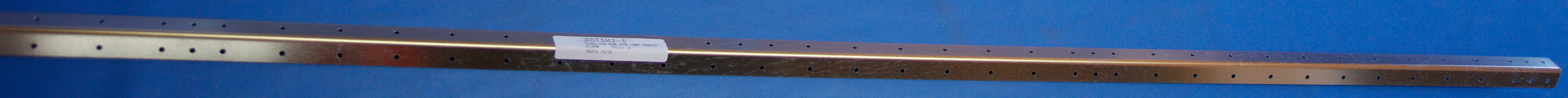

SD75H2-5 – Stabilizer rear spar lower doubler.

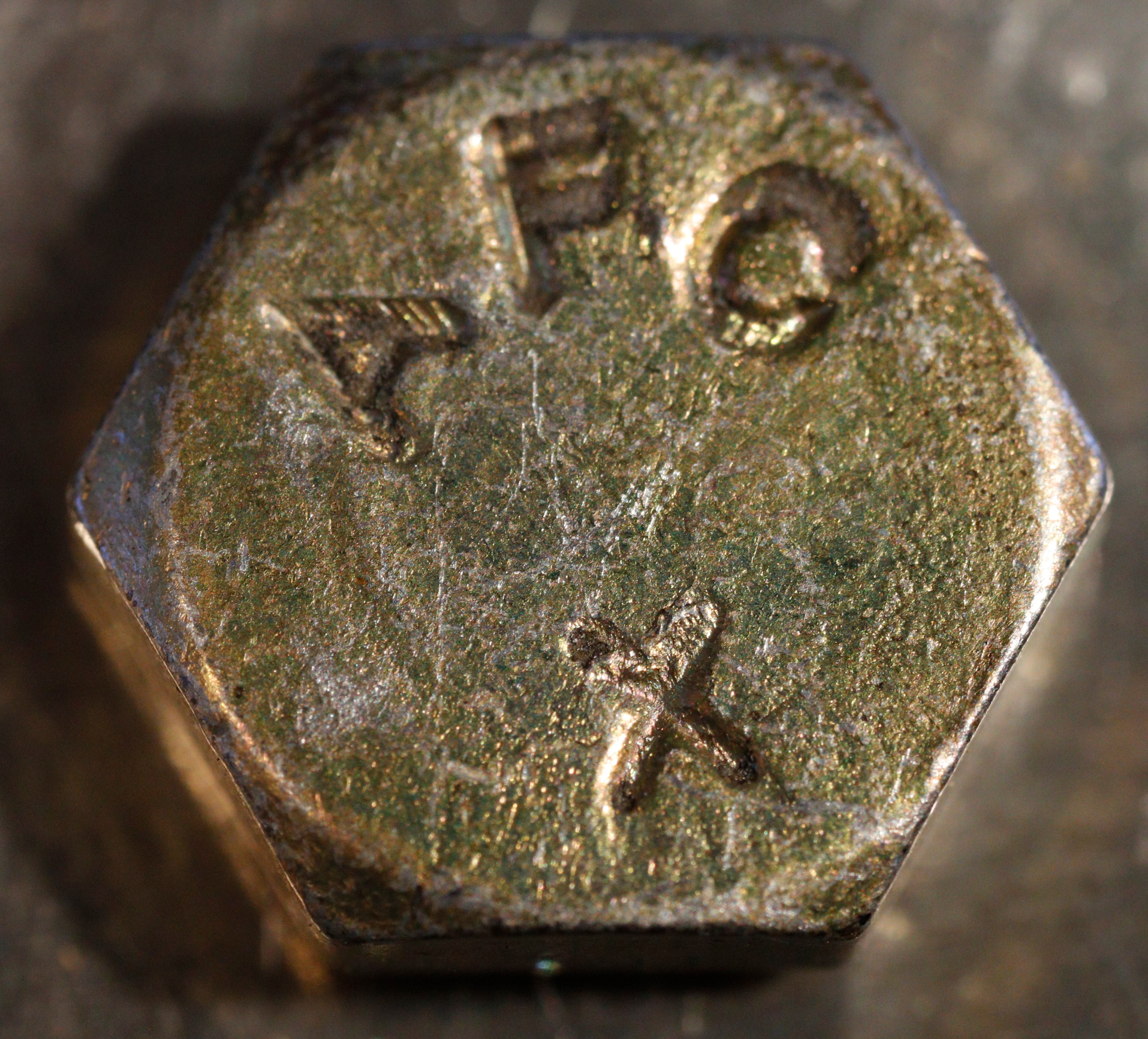

AN3-5A bolt head

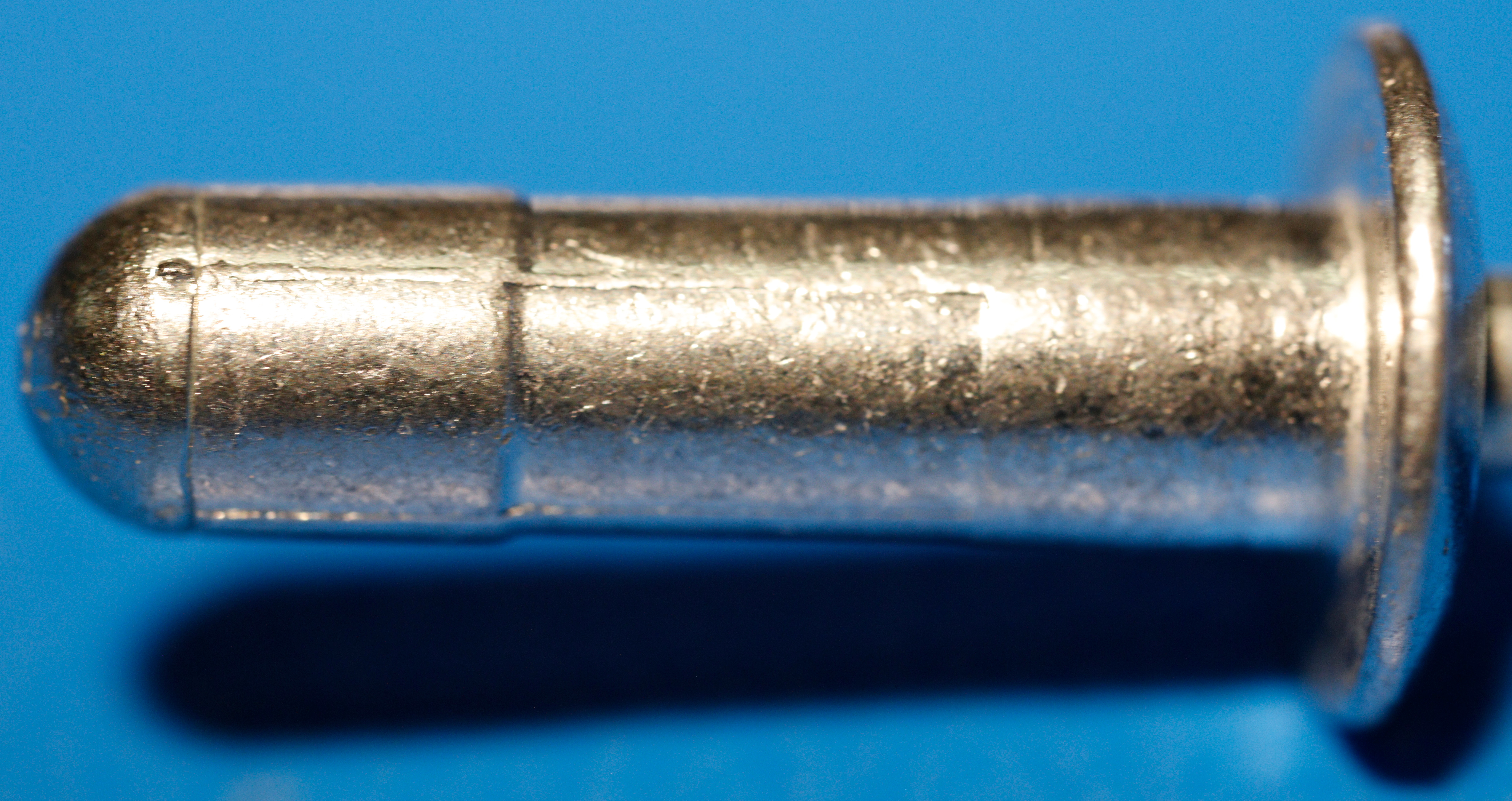

A6 Rivet
