Errata

Zenith errors in parts and documentation.

Parts

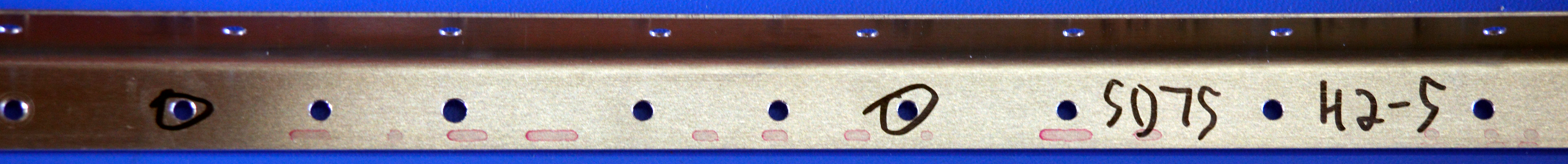

SD75H2-5

Two holes need to be drilled to 3/16" for AN3-5A bolt.

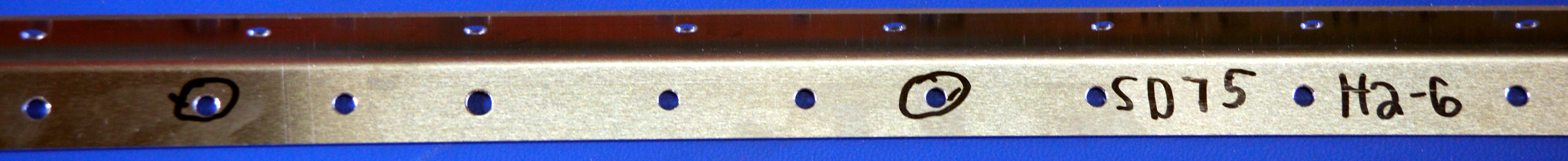

SD75H2-6

Two holes need to be drilled to 3/16" for AN3-5A bolt.

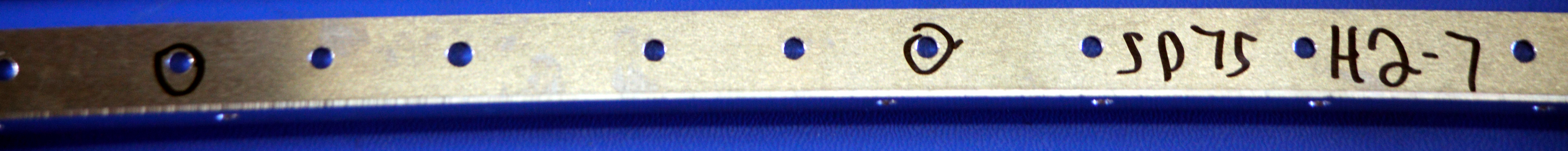

SD75H2-7

Two holes need to be drilled to 3/16" for AN3-5A bolt.

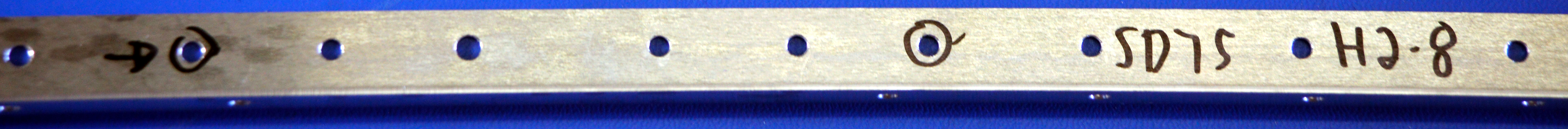

SD75H2-8

Two holes need to be drilled to 3/16" for AN3-5A bolt.

SD75H2-11

The parts that need AN3-5A bolts, AN3-6A bolts, and A6 rivets all need the holes drilled. SD75-H2-11 itself may be ok, but the parts that need to attach to it are all wrong.

SD75H3-6

Drawings

SD75-HS-02

The upper right drawing section should have 8 washers.

Each AN3-5A bolt needs a washer under the nut.

Each EN3-6A bolt needs a washer under the nut and a washer under the head.
